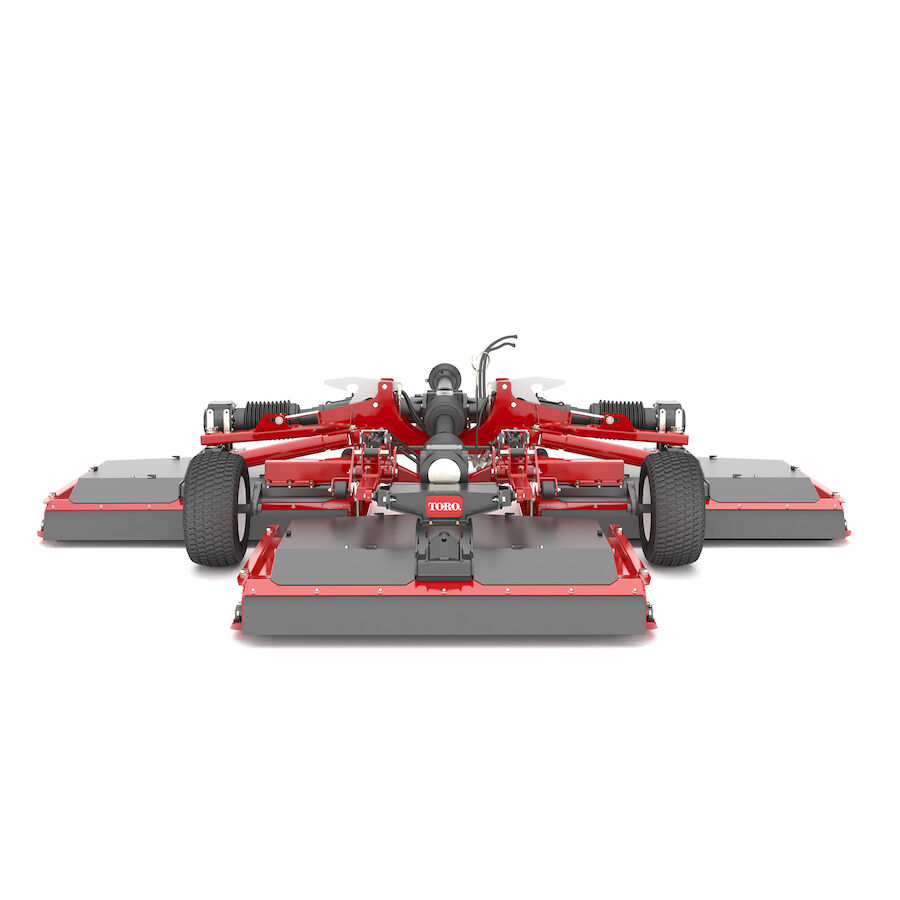

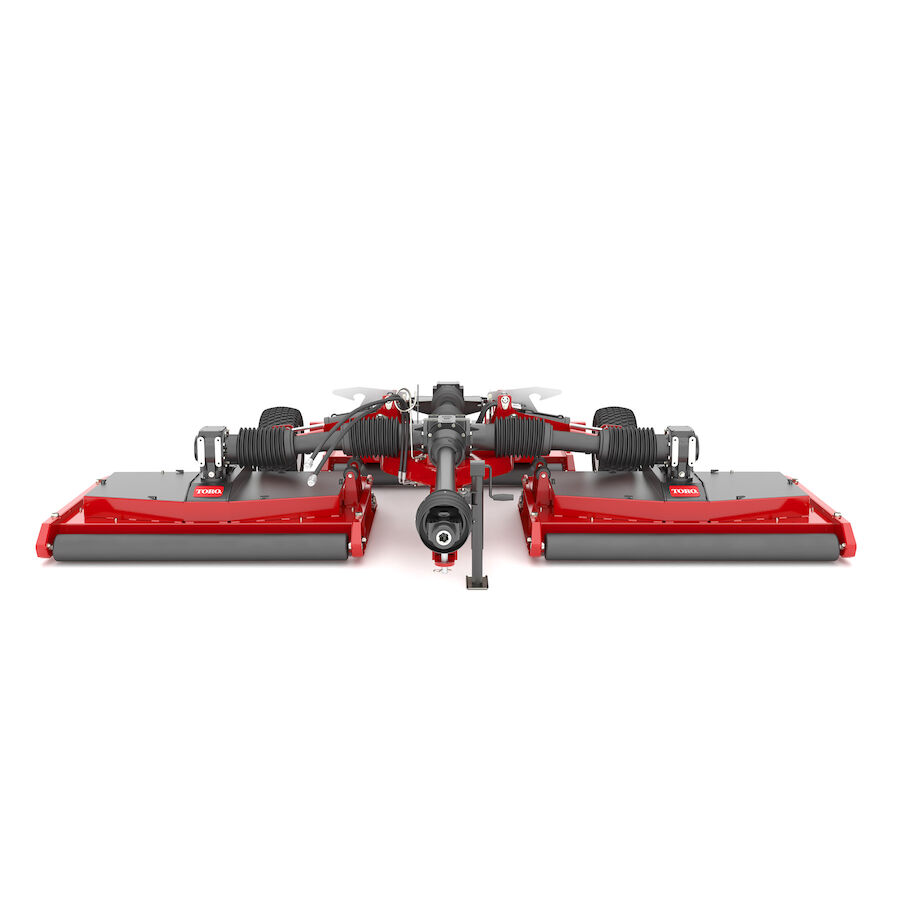

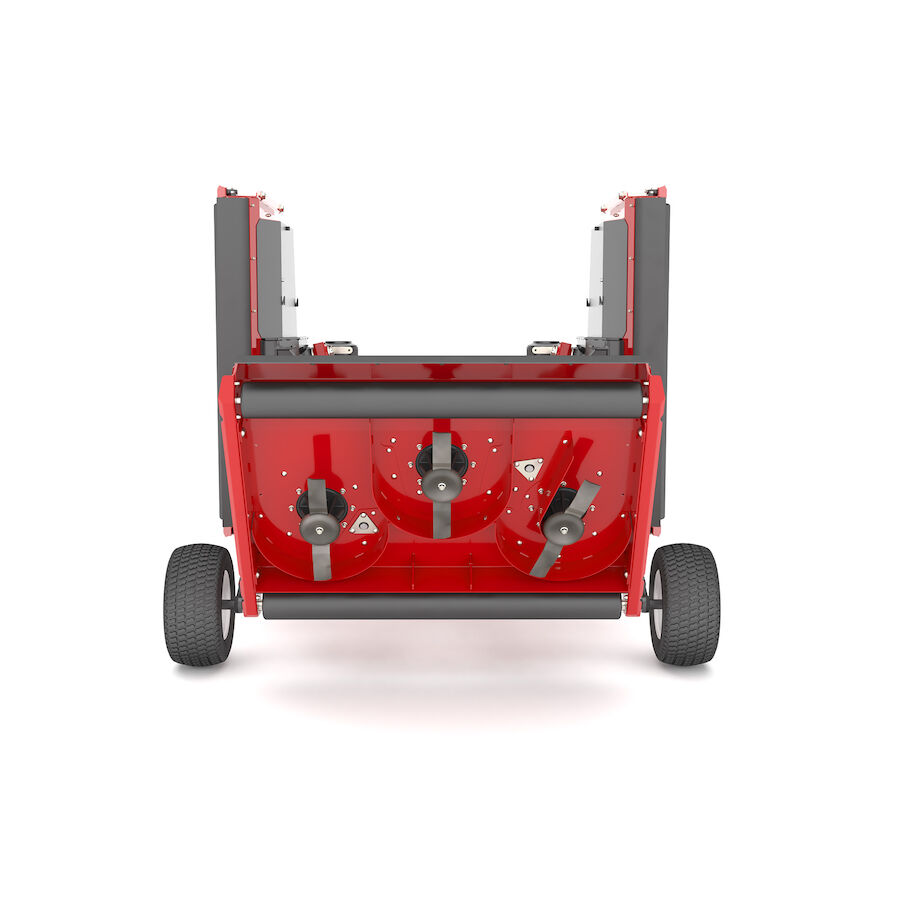

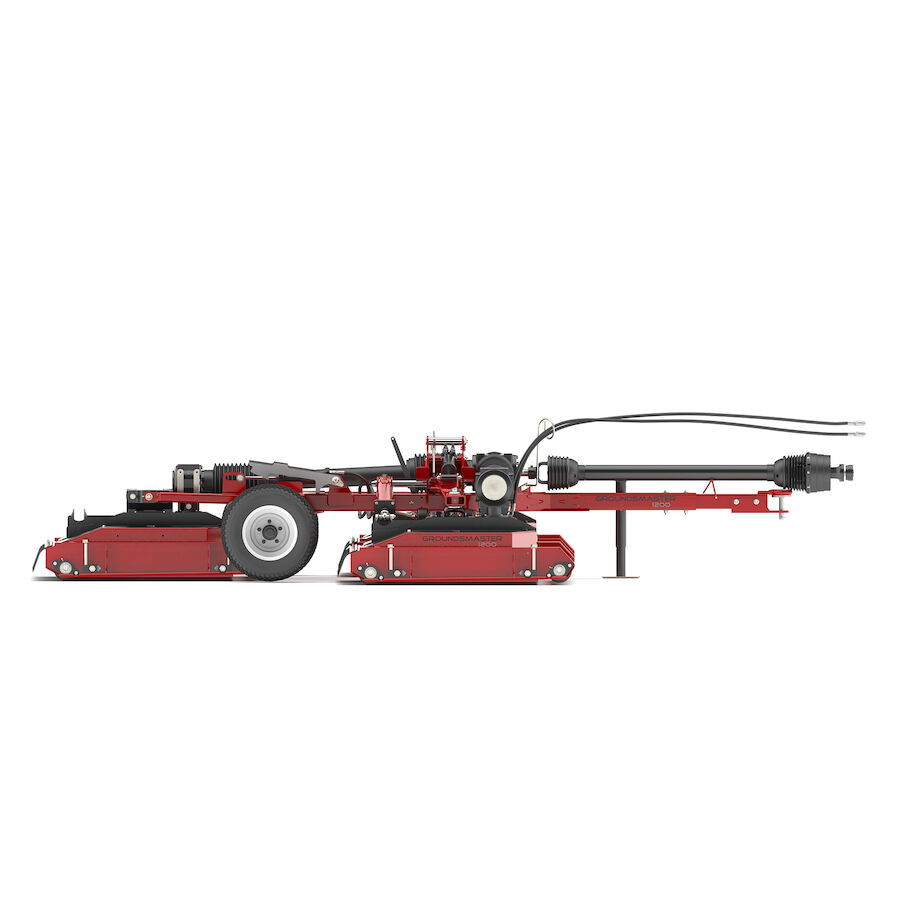

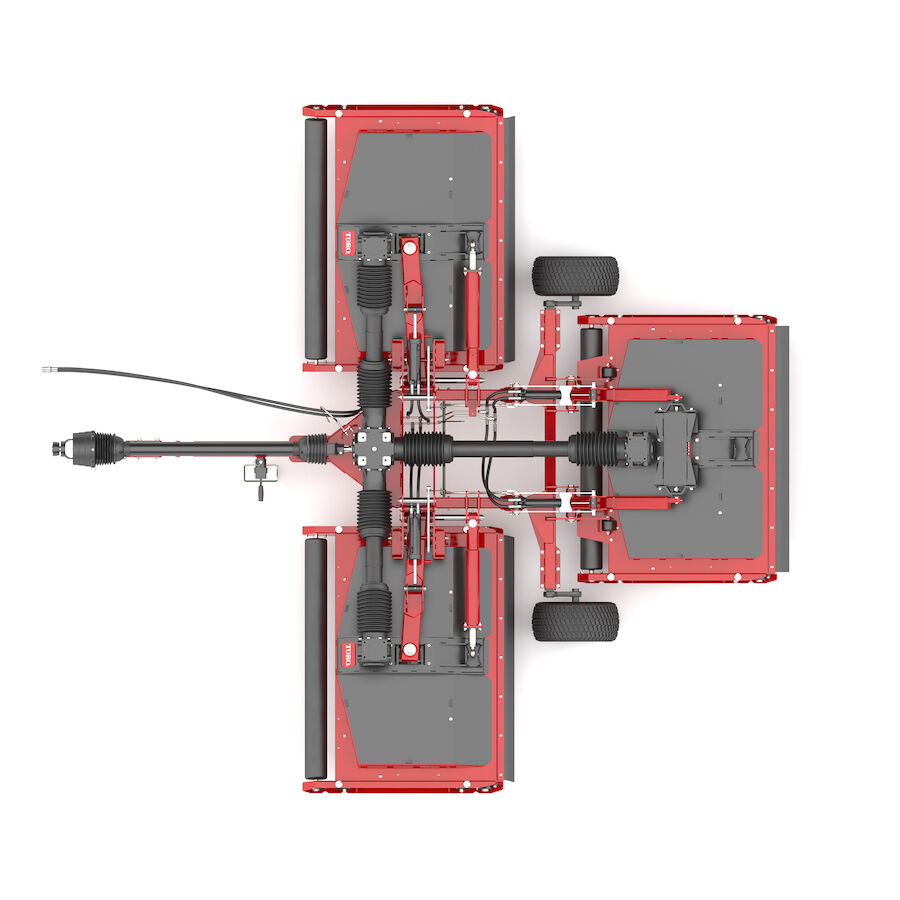

Groundsmaster® 1200

  • Model: 31905
See All Items in Groundsmaster® 1200 Series
  • The Toro bi-directional impact absorption system was designed for an impact of 5 mph. The spring-loaded cylinder allows the deck to rotate upon impact, which absorbs the force and protects the mowing decks and main frame components from damage, enhancing productivity.
  • Ductile cast iron spindle housing is large in diameter [9 in. (229 mm) at the base] to dissipate impact loads. Dual tapered roller bearings last up to six times longer than ball bearings.
  • The deck gearboxes include an overrunning clutch that isolates the force from accidental blade impacts to keep the mower and tractor safe.
  • The two full width rollers on the front and rear of each deck help deliver an exceptional quality of cut. The front rollers help reduce scalping in undulated terrain while the rear rollers delivers the exceptional turf striping.
  • The Groundsmaster 1200 features a deck lift system allowing for the decks to be lifted from the turf while the PTO is engaged to quickly turn around without scuffing or transport over cart paths. This system helps keep the operator running at peak productivity.
  • The Groundsmaster 1200 is not only a highly productive mower, it's also very versatile. Each deck features four mowing height adjustment points making it simple and quick to deliver the exact mowing height for superior conditions.
  • The Groundsmaster 1200 wing decks fold up near vertical for a narrow 86" (218.4cm) transport width making it easy to get from site to site. Additionally, the transport wheels feature a torsion axle delivering a remarkably smooth ride making transport quick and comfortable.

Overview

The Only Pull-Behind Worthy of Being a Groundsmaster.

The Groundsmaster 1200 delivers an unparalleled combination of productivity, durability and superior cut. It features a 12-foot (3.7 meters) width of cut and can mow up to 8.73 acres/h (3.53 hectares/h) at 6 mph (9.7 km/h) per hour. Remaining true to Groundsmaster’s unmatched reputation of durability, the 1200 was designed for years of reliable mowing. Its spindles are the same as Toro’s large rotaries and capable of withstanding the roughest conditions. The bi-directional impact resistant system provides additional protection to the wing decks. Don’t let its productivity and robust design fool you; the Groundsmaster 1200’s independently articulating decks hug undulations for an exceptional finish. Combine this with the dual roller design, the Groundsmaster 1200 delivers a high-quality cut and rich turf striping in most conditions.

Productivity, durability and exceptional cut. That’s what makes the 1200 the only pull behind worthy of being a Groundsmaster.

Features

Cutting Deck Protection
Cutting Deck Protection
The Toro bi-directional impact absorption system was designed for an impact of 5 mph. The spring-loaded cylinder allows the deck to rotate upon impact, which absorbs the force and protects the mowing decks and main frame components from damage, enhancing productivity.

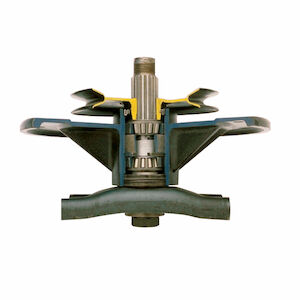

Durable Spindles
Durable Spindles
Ductile cast iron spindle housing is large in diameter [9 in. (229 mm) at the base] to dissipate impact loads. Dual tapered roller bearings last up to six times longer than ball bearings.
Robust Gearboxes
Robust Gearboxes
The deck gearboxes include an overrunning clutch that isolates the force from accidental blade impacts to keep the mower and tractor safe.
Dual Rollers
Dual Rollers
The two full width rollers on the front and rear of each deck help deliver an exceptional quality of cut. The front rollers help reduce scalping in undulated terrain while the rear rollers delivers the exceptional turf striping. Each roller includes heavy duty bearings featuring easy access grease points.
Maximum Productivity
Maximum Productivity
The Groundsmaster 1200 features a deck lift system allowing for the decks to be lifted from the turf while the PTO is engaged to quickly turn around without scuffing or transport over cart paths. This system helps keep the operator running at peak productivity.
Simple Height of Cut Adjustment
Simple Height of Cut Adjustment
The Groundsmaster 1200 is not only a highly productive mower, it's also very versatile. Each deck features four mowing height adjustment points making it simple and quick to deliver the exact mowing height for superior conditions.
Quick Transport
Quick Transport

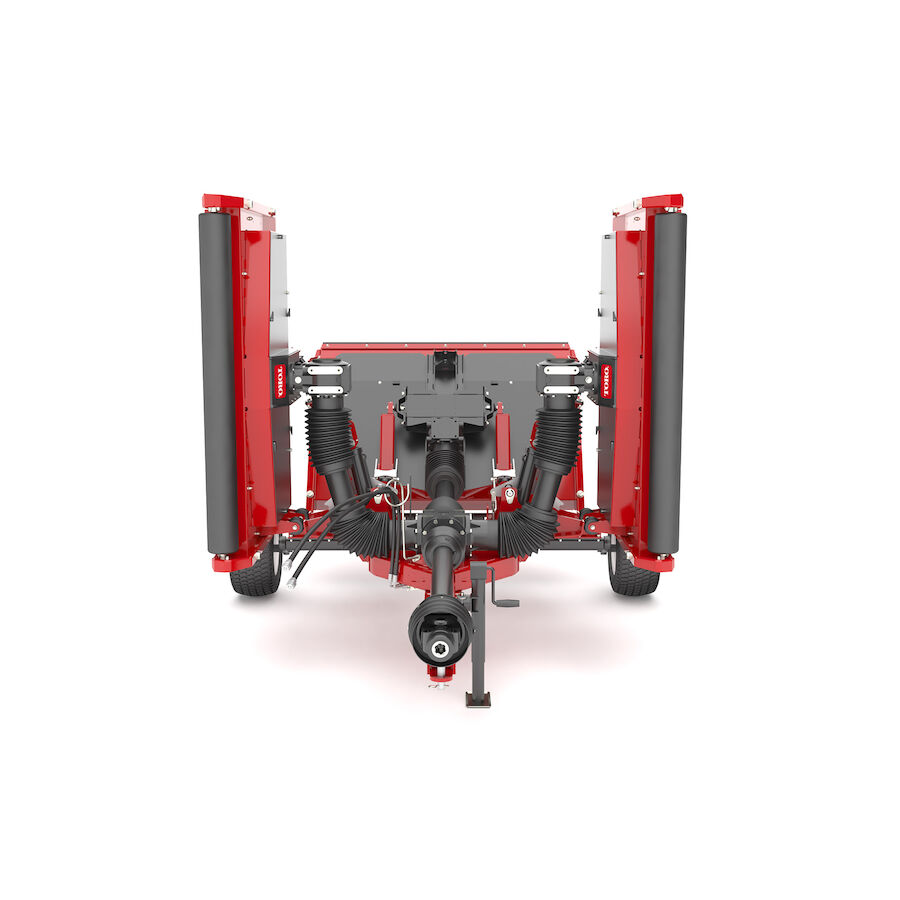

The Groundsmaster 1200 wing decks fold up near vertical for a narrow 86" (218.4cm) transport width making it easy to get from site to site. Additionally, the transport wheels feature a torsion axle delivering a remarkably smooth ride making transport quick and comfortable.

Specifications

Blade Style/Type Rotary
Blade Type (Description) Standard Blades: 19" (48.3 cm) long, 2.5" (6.4 cm) wide, 0.25" (6.4 mm) thick
Cab Unit N/A
Clip Frequency/Backlapping 15,000 ± 300 ft/min (4572 ± 91.4 m/min) at 540 PTO RPM
Cutting Unit Type/Configuration Overall: 144" (365 cm), Individual deck: 54" (137 cm), Overlap: 9" (23 cm)
Deck Construction 10-gauge high strength steel constructed deck with 7-gauge bolt-in reinforcements. 7-gauge welded steel side skids with 5" (12.7 cm) diameter steel rollers.
Deck Wing Protection Bi-directional, impact absorption device on each wing deck
Drivetrain PTO
Ground Following 9 anti-scalp cups, one on each blade, two anti-scalp/striping rollers on each deck. On each deck: two 5" (12.7 cm) diameter roller.
Height Transport height: 75.75" (192.4 cm)
Height of Cut Range 0.5" - 4.0" (1.3 cm - 10.2 cm) infinitely variable
Mowing Rate (Productivity) Up to 8.7 acres/hr @ 6 mph
Number of Blades 9
Optional Accessories Roller scraper kit, standard blade kit, high-lift blade kit, safety chain kit, Atomic blade kit, tow chain kit, fender kit, SMV Kit, tail light kit, blade cover kit, clevis hitch, pintle eye hitch
Overall Width 149.8" (380.5 cm) with decks down
Power Train (Engine Description) Minimum 35 HP (26.1 kW) at the PTO, 540 RPM
Product Length Transport length: 145.5" (369.6 cm) (hitch fully extended)
Spindle Assembly 1.25" (3.17 cm) diameter spindle shafts, 9" (22.9 cm) diameter conical ductile iron housing and two greaseable tapered roller bearings. Driven counter-clockwise when viewed from the top.
Tires - Front 20" x 10" - 10", 6-ply, Tubeless Multi-Trac
Traction Drive No Drive
Traction Drive (System) PTO drive-shaft drives 4-way gearbox, secondary drive-shafts drive indiv. deck gearboxes
Transport Width 86" (218.4 cm) at 0.5" (1.27 cm) HOC
Weight 2,984 lbs. (1,354 kg)
Width of Cut 144" (365 cm)

Accessories

Toro Genuine Parts Logo
Pintle Hitch (Part # 07536)
Toro Genuine Parts Logo
9 Blade Service Pack- 19.00 Inch High Sail/Flow Blade (Part # 138-9028)
Genuine OEM Part 138-9029

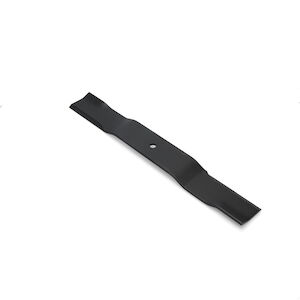

9 Blade Service Pack- 19.00 Inch Medium Sail/Flow Blade (Part # 138-9029)
Image Not Found
SMV KIT (GM1200) (Part # 138-9030)
Image Not Found
FENDER KIT (Part # 139-3174)
Empty Image Container
Blade Cover Kit (Part # 139-3178)
Toro Genuine Parts Logo
Safety Chain Kit (Part # 139-3179)
Toro Genuine Parts Logo
9 Blade Service Pack- 19.00 Inch Atomic® Mulching Blade (Part # 140-0028)
Genuine OEM Part 140-0034
Roller Scraper Kit (Part # 140-0034)
Image Not Found
CLEVIS-HITCH [SVC PKG] (Part # 140-7011sp)
Image Not Found
EYE-PINTLE [SVC PKG] (Part # 140-7012SP)
Image Not Found
1" HITCH PIN (Part # 140-7025)
Image Not Found

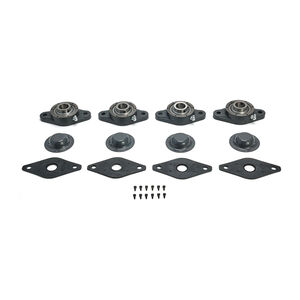

BEARING SERVICE KIT (Part # 140-7027)
Toro Genuine Parts Logo
Homologation Kit (Part # 31950)

Documents

Title Documents
Groundsmaster 1200 Sell Sheet PDF - Sellsheet-en-us
Groundsmaster Large Rotary Lineup 1_21.pdf PDF - Product Literature-en-us



Warranty

2-Year Limited

**See dealer for Warranty details.
