Groundsmaster® 4700

  • Model: 30887
See All Items in Groundsmaster® 4300/4500/4700 Series
Request a Demo
  • Proven rugged frame, drivetrain, and components ensure durability and long life. Heavy-duty welded steel decks and frames provide extra durability and long life.
  • The Contour™ Plus cutting technology takes quality of cut to a whole new level. Air inlet pockets keep the grass standing tall for the cleanest possible cut and a modified rear discharge opening disperses clippings more evenly. An optional mulching kit and optional high height of cut blade are also available.
  • Quick and easy access to all major service areas.
  • A unique, parallel hydraulic traction system that assures full-time, bi-directional 4-wheel drive for dependable traction on hills and wet terrain without tire scuffing.
  • The Groundsmaster® Contour Series mowers provide the productivity you need, no matter the size. Mow up to 10.6 acres (4.3 hectares) per hour to get the job done fast.
  • Rear rollers provide an attractive striping effect while you mow, greatly enhancing the finished look of your turf.

Overview

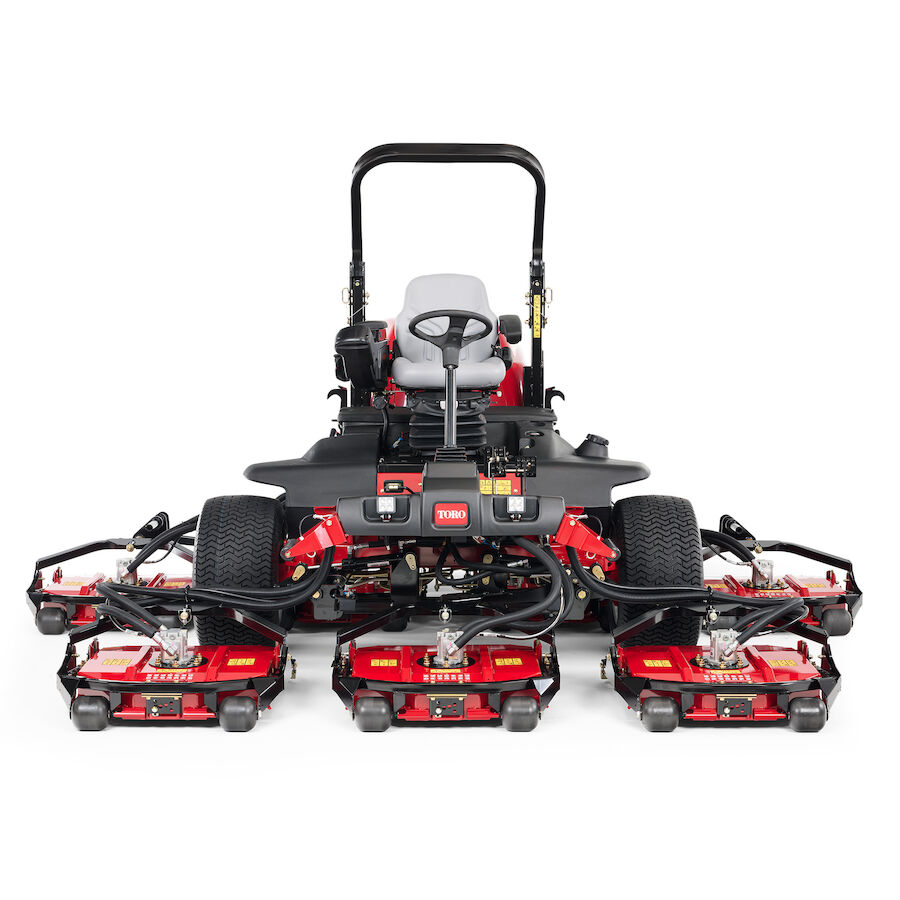

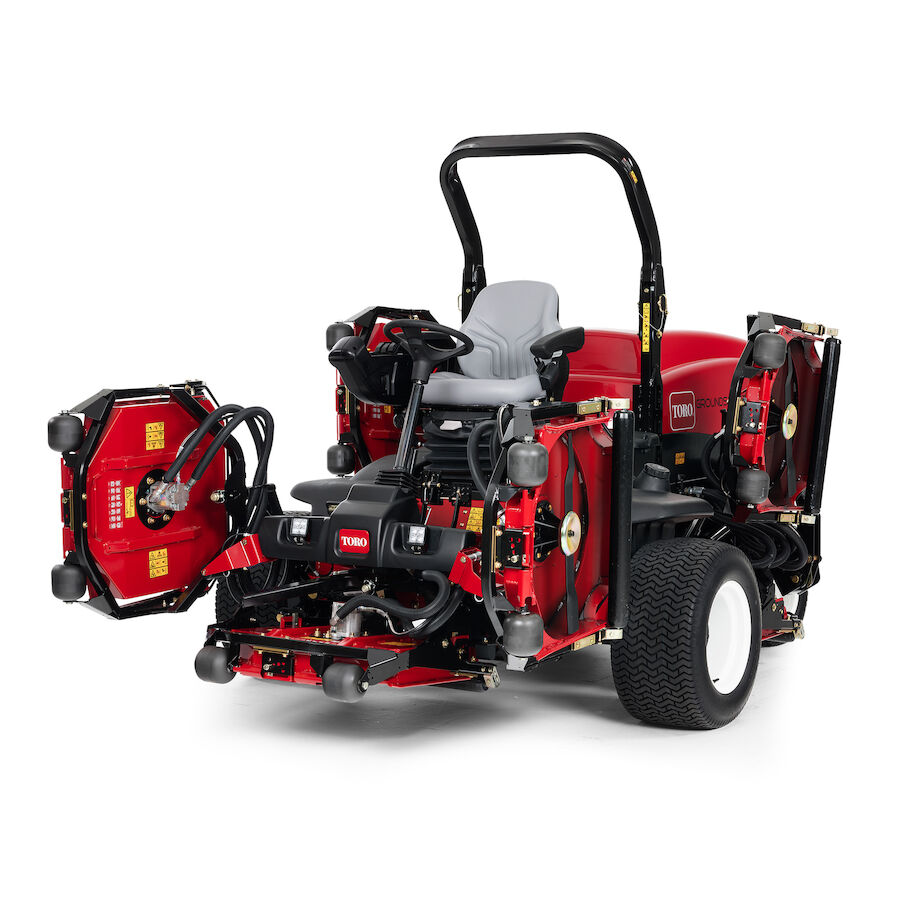

The Groundsmaster® 4700-D continues to provide the clean quality of cut of a reel mower but with the maintenance ease of a rotary. At 150” width of cut, the free-floating Contour™ Plus Decks eliminate scalping, provide dramatic striping and deliver a picture perfect cut. Toro’s exclusive SmartCool™ system keeps your machine on the job and moving forward. Before things get too hot, SmartCool briefly reverses the cooling fan to blast chaff and debris from the intake screens. With a 55 hp (41 kW) Tier 4 Final and Stage V compliant turbo-diesel and the new Smart Power™ technology, that maximizes power to the cutting blades, the Groundsmaster 4700-D is an unprecedented blend of powerful productivity and refined results.

Features

Durable Design
Durable Design
Proven rugged frame, drivetrain, and components ensure durability and long life. Heavy-duty welded steel decks and frames provide extra durability and long life.
Contour® Plus Cutting Decks
Contour® Plus Cutting Decks
The Contour™ Plus cutting technology takes quality of cut to a whole new level. Air inlet pockets keep the grass standing tall for the cleanest possible cut and a modified rear discharge opening disperses clippings more evenly. An optional mulching kit and optional high height of cut blade are also available.
InfoCenter™
InfoCenter™
Get helpful maintenance reminders and instant notification of potential problems. During normal operation, the InfoCenter displays operating information, while constantly monitoring the internal health of the machine. Audible and visual alarms notify the operator of a potential problems, which helps technicians identify the source of the issue. With the electronically controlled foot pedal, set a maximum mowing speed for greater control of operator usage.
Operator Comfort

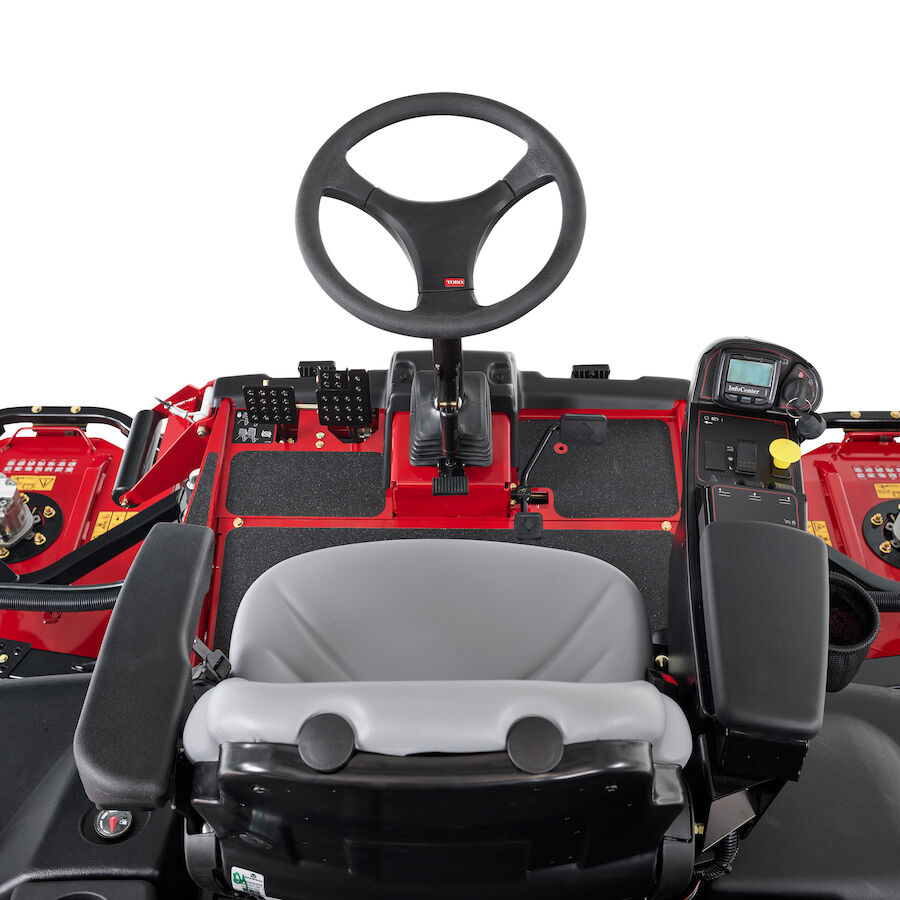

Operator Comfort
The operator area of the Groundsmaster® 4500-D and 4700-D was designed to make work more comfortable with amenities like a large operator platform, multi-size beverage holder, 12-volt outlet, storage box, deluxe seat, and portable radio holder. Operators will also be pleased by the lower sound levels and the additional storage area behind the seat that's large enough for a water cooler, trash bucket, and other items.
Easy Service

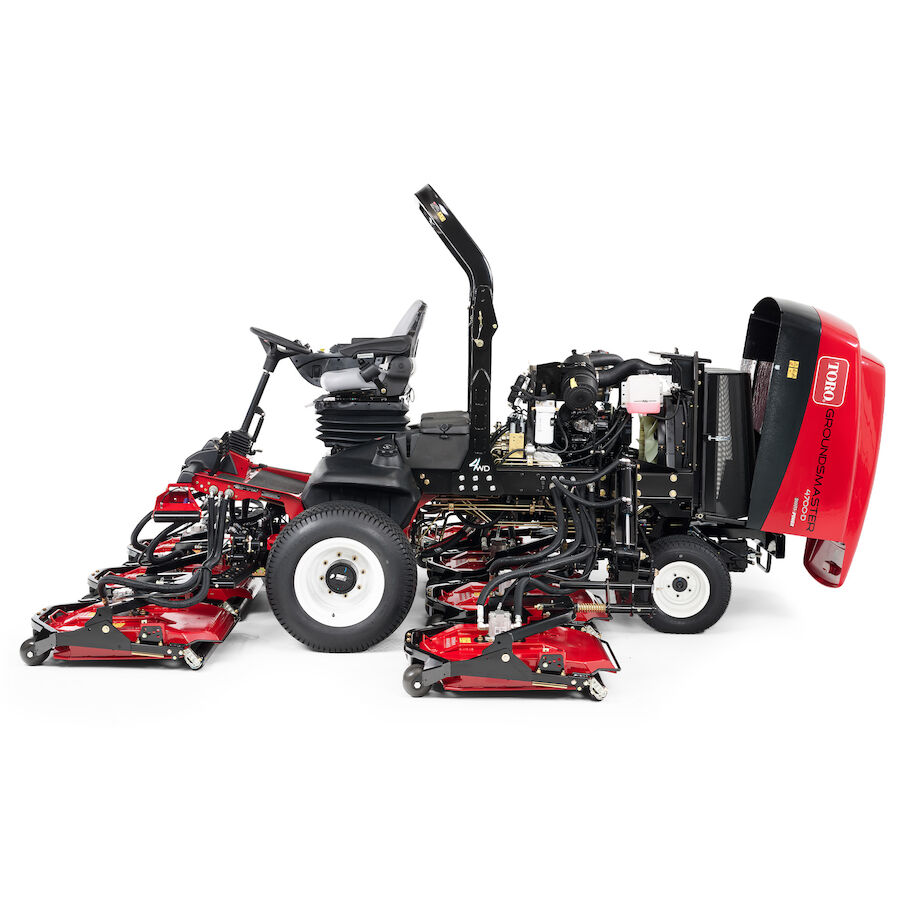

Easy Service
Quick and easy access to all major service areas.
4-Wheel Drive
4-Wheel Drive
The Groundsmaster® 4500-D and 4700-D both feature a unique, parallel hydraulic traction system that assures full-time, bi-directional 4-wheel drive. Parallel hydraulic flow between front and rear wheels means that you will have 4-wheel drive assistance in turns, enabling easier trimming around objects without tire scuffing and dependable traction on hills and wet terrain.
Productivity
Productivity
The Groundsmaster® Contour Series mowers provide the productivity you need, no matter the size. Mow up to 10.6 acres (4.3 hectares) per hour to get the job done fast.
Attractive Striping

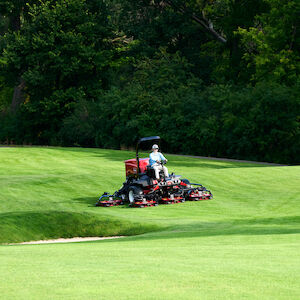

Attractive Striping
Rear rollers provide an attractive striping effect while you mow, greatly enhancing the finished look of your turf.

Specifications

Air Filter Dry, replaceable primary and safety elements.
Armrests Standard
Battery 12V
Blade Style/Type Rotary
Blade Type (Description) 27" (68.6 cm) long, 2.5" (6.4 cm) wide, 0.25" (0.64 cm) thick combination blades.
Cab Unit N/A
Controls Ignition switch, low and auto mow/transport range selection switch, PTO switch, light switch. Foot-operated traction pedal, individual foot-operated steering brake control of left and right wheels with parking brake lock. One 2-position lift switch.
Cooling System Description 8.25 gallon (31.3 liter) capacity with 10 micron remote spin-on filter, 9 row single pass cooler with tilt out for cleaning. Variable speed hydraulic fan drive with automatic (based on coolant and oil temps) and auto/manual reversing capabilities. Rear-mount, single pass, 7-row radiator with 6.3 fins per inch, 13 quart (12.3 liters) capacity.
Cruise Control Standard off/on plus engage switch. Increase/decrease speed through InfoCenter, once engaged.
Cup Holder Standard

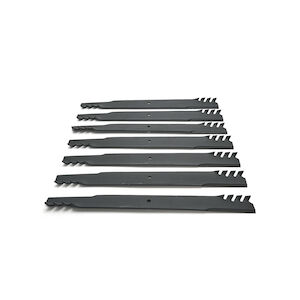

Cutting Unit Accessories Atomic Mulching Blades, High Sail/Angle Sail Blades, Rear Roller Scraper Kit, Mulching Kit, Deck Lock Kit, 27” Rotary Replacement Cutting Unit
Cutting Unit Lift/Lower Three 2-position switches for deck raise/lower.
Cutting Unit Type/Configuration Seven Contour™ Plus 27" (68.6 cm), rear-discharge rotary cutting units with standard full-length striping rear rollers. Operate-on-the-fly mowing configurations of 5, 6, or 7 decks utilizing the independently-operable outboard cutting units, resulting in cutting widths of 109" (276.8 cm), 129.5" (328.9 cm), or 150" (381 cm), overlap 6.5" (16.5 cm), overhang 30.9" (78.4 cm)
Deck Construction 10-gauge steel constructed chambers with 12-gauge welded reinforcements. 1.5" (3.8 cm) square x 0.25" (0.6 cm) wall tube with 7-gauge side supports. Spindle support 3/16" (0.48 cm) high-strength steel and 10-gauge exterior channels.
Deck Wing Protection Impact absorption device on each wing deck.
Drivetrain Diesel
Electrical System 12-volt, 650 CCA battery, 40 amp alternator. Overload protection with automotive type fuses.
Engine Cooling Liquid Cooled
Fuel / Power Source Diesel / Biodiesel
Fuel Capacity 22 U.S. gal. (83.3 L)
Gauges/Instrumentation InfoCenter™: Onboard LCD display shows gauges, alerts/faults, service reminders, electrical system diagnostics. Indicates fuel level, coolant temperature, intake temperature, low oil pressure, alternator, engine hours, engine rpm, hydraulic oil temperature, voltage and fuel usage.
Ground Clearance 6" (15.3 cm)
Ground Following 6" (15.3 cm) anti-scalp cups on each blade.
Ground Speed - Forward 0 - 13 mph (0 - 21 km/h)
Ground Speed - Reverse 0 - 8 mph (0 - 12.8 km/h)
Height with 2-post ROPS: 88.8" (216 cm) upright, 65.2" (165 cm) folded
Height of Cut Range 0.75" - 4" (1.9 cm - 10.2 cm) in 0.25" (0.6 cm) increments. 3-position 0.030" (0.08 cm) incremental calibration.
Hydraulic Cylinders 10 micron remote spin-on filter, single pass cooler, 6.3 fins per inch. Variable speed hydraulic fan drive with automatic (based on coolant and oil temps) and auto/manual reversing capabilities.
Hydraulic Fluid Capacity 8.25 U.S. gal. (31.2 L)
Hydraulic Fluid Type Toro PX™ Extended Life Hydraulic Fluid
Interlocks Prevents engine from starting unless traction pedal is in neutral and deck is disengaged. If operator leaves seat with deck engaged, engine stops. Machine automatically switches to low range if decks are lowered. Engine stops if parking brake engaged and traction pedal not in neutral. Prevents switching mow to transport unless stopped to protect turf.
Lighting Standard
Main Frame/Chassis All welded formed-steel frame with integral tie-down anchors.
Max Slope Angle Refer to operator's manual.
Mowing Rate (Productivity) Up to 10.6 acres/hr (4.3 hectacres/hr)
Mowing Speed 0 - 6.5 mph (0 - 10.4 km/h)
Number of Blades 7
Oil Capacity 6 U.S. qt. (5.7 L)
Optional Accessories Heat-only Cab, White Sunshade, Red Sunshade, Operator Fan Kit, 4WD Flow Divider Kit, Two-post ROPS Extension System, Windscreen, 90-amp Alternator Kit, Road Light Kit, Rotating Beacon
Overall Width 153.8" (391 cm) lowered, 88.3" (224 cm) raised
Parking/Service Brakes Dynamic through hydrostatic transmission, plus mechanically-actuated, internal wet disc brakes on input to each planetary drive. Individual foot-operated steering brake control of left and right front wheel. Lock pedals together and latch to engage parking brake.
Power Steering Yes
Power Train (Engine Description) Yanmar® 4-cylinder liquid-cooled, turbo-charged diesel. Power: 55 hp (41.1 kW) gross power at rated speed of 2700 rpm. Torque peak: 125 ft-lbs (169 Nm) @ 2000 rpm. Displacement: 127 cu. in. (2.1 liters). EPA Tier IV Final and Stage V Compliant.
Product Length 145.8" (370 cm)
Rollers Per deck: Two 5" (12.7 cm) diameter front rollers, one 3" (7.6 cm) diameter rear roller.
Safety/Operator Safety 2-post foldable ROPS and seat belt standard.
Seat Premium seat with adjustments for operator weight via air ride suspension, seat fore/aft position, seat back angle, arm rest height and retractable seat belt.
Spindle Assembly Ductile cast iron spindle housing. Dual greaseable tapered roller bearings. 1.25" (3.2 cm) diameter solid cold finished steel spindle shaft. Splined connection between spindle shaft and deck motor. Welded blade retainer plus anti-scalp cups.
Starting Key Start
Steering System Description Power steering with dedicated power source, tilt steering.
Tires - Front 29” x 14” - 15”, 6-ply
Tires - Rear 20" x 10" - 10", 4-ply, Turf Tread
Tool Box Standard
Traction Drive 4WD
Traction Drive (System) Parallel hydrostatic, closed loop system with full-time 4WD forward/reverse in low (mow) and high (transport) range with optional full-time, momentary traction flow divider (forward only) (Model 31527). Variable displacement piston pump with electronic servo control powers dual speed piston motor drive into double reduction planetary in front, and mechanical axle in rear. Smart Power® feature controls traction speed to maintain optimal cutting blade speed.
Transport Width Track Width (front): 88.3" (224 cm) Track Width (rear): 55.5" (141 cm)
Weight 5,045 lbs. (2288 kg) with full fluids.
Wheelbase 67.5" (172 cm)
Width of Cut 150" (381 cm)
