New

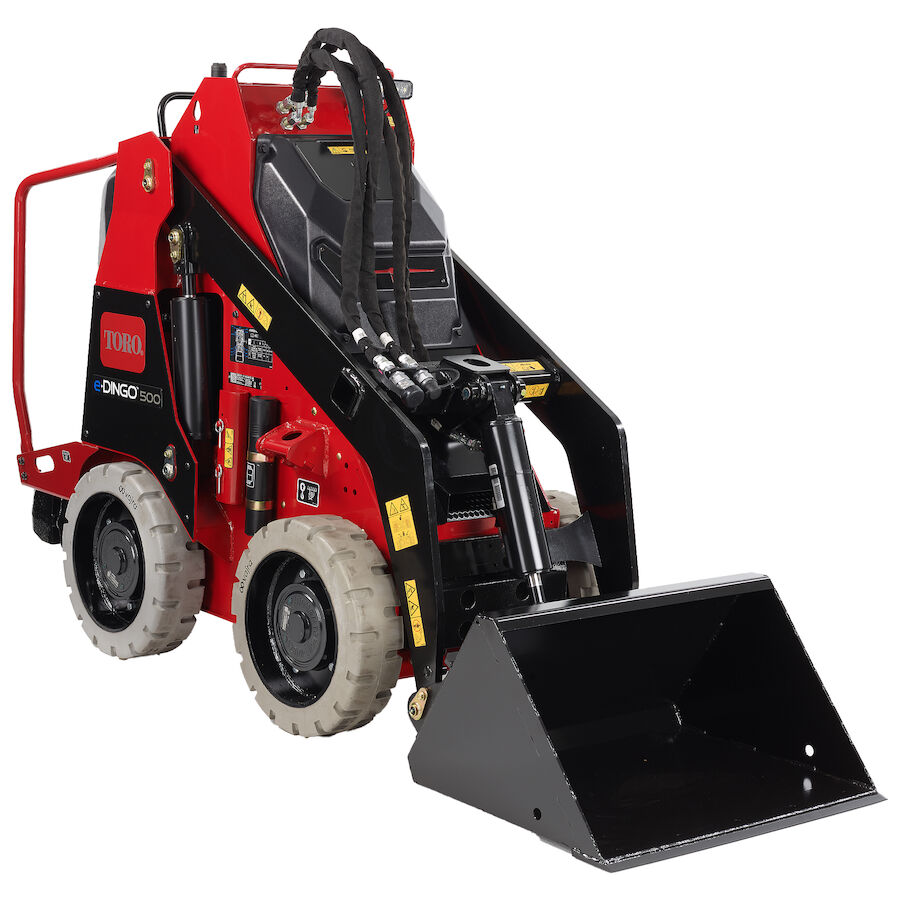

30" Standard Bucket

  • Model: 23174
Find a Dealer
  • Overall frame width of 30” for fitting through 36” doors
  • Great for general use

Overview

The 30" Standard Bucket is a powerhouse when it comes to moving concrete, rock, dirt, sand, or any other materials around the job site. Its slim 30" width allows for easy navigation through doorways and tight spaces, optimizing efficiency.

Designed with a hardened steel cutting edge, this bucket delivers exceptional cutting and digging capabilities, ensuring top-notch performance even in challenging digging conditions. Its superior wear resistance guarantees long-lasting durability.

With a generous capacity of just under 3 cubic feet (0.08 cu. m.), the 30" Standard Bucket is the perfect tool to tackle various material handling tasks on your project.

Specifications

Capacity Heaped 3.4 ft³ (0.10m³)
Capacity SAE Struck 2.9 ft³ (0.08 m³)
Construction Fabricated, welded steel frame
Height 17 in. / 42 cm
Length 29 in. / 73.6 cm
Models Dingo 320-D, Dingo 323, Dingo TX 1000, Dingo TX 1000 TURBO, Dingo TX 1300, Dingo TX 427, Dingo TX 525, Dingo TX 700, eDingo 500
Mounting Frame Dingo® quick-attach mount plate, fabricated, welded base
Weight 113 lbs / 51.3 kg
Width 21 in. / 53.3 cm

Parts & Manuals

Select your model year from the options below to view parts & manuals.

23174 Serial #
400000000-999999999



Warranty

For complete product warranty information contact Toro Customer Service

**See dealer for Warranty details.
