TX 700 wide track loader right side with a grapple rake attachment

Dingo® TX 700 Track Loader, Wide

Model: 22352
UPC/EAN: 21038223520

See All Items in Dingo® TX 700 Track Loader

Find a Dealer

Compact footprint
Patented traction control
Camso track system with less aggressive tread pattern that minimizes turf damage

Top

Find a Dealer

Overview

Designed to give you more power in a compact package, the Toro® Dingo® TX 700 expands labor savings beyond just homeowner projects. This no-nonsense workhorse packs 700 lbs of rated operating capacity in a smaller footprint, so it’s ideal for projects where homeowners and contractors are working in confined spaces.

Features

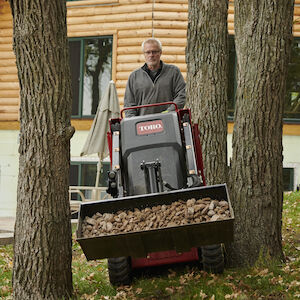

Smaller Footprint

Packs 700 lbs. of rated operating capacity in a smaller footprint, making it ideal for projects where homeowners and contractors need to reach tight areas or work in confined spaces.

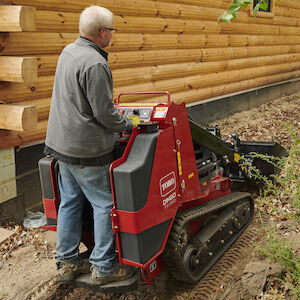

Dingo TX700 white male operating with a bucket

Easy Operation

Featuring patented Dingo TX 1000 traction controls and a dedicated stand-on platform, the Dingo TX 700 is easy to use and offers increased comfort and visibility to the operator.

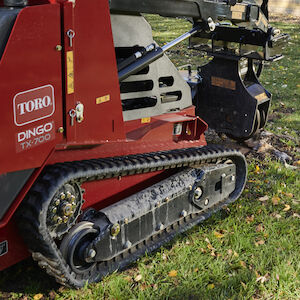

Gentle On Turf

Available in both narrow track and wide track configurations, the Dingo TX 700 is equipped with the industry-tested Camso track system — which features a less aggressive tread pattern that minimizes turf damage.

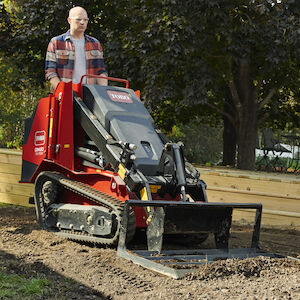

Dingo TX700 using the level attachment to smooth dirt

Job Versatility

Compatible with dozens of attachments, including multiple types of buckets, adjustable forks, a grapple, leveler, utility blade and more, the Dingo TX 700 can be used for a wide range of jobs.

Specifications

Air Filter	Dual Element
Cooling System	Combo Downflow Radiator and Cooler Oil Cooler
Dump Angle	42 deg
Dump Height	52.9 in. / 134.4 cm
Engine Discplacement	1262 cc (77 cu.in.)
Engine Horsepower	24.7 hp (18 kW) @ 3,000 rpm
Engine Make	Yanmar
Engine Model	3TNV80F
Fuel Tank	5.5 gal. / 20.8 L
Fuel Type	Diesel
Ground Clearance	5.25 in. / 13.3 cm
Ground Pressure	8 psi
Ground Speed - Forward	Up to 4 mph / 6.4 km/h
Ground Speed - Reverse	Up to 4 mph / 6.4 km/h
Height	55.3 in. / 140.5 cm
Height - With Bucket	55.3 in. / 140.5 cm
Hinge Pin Height	73.5 in. / 186.7 cm
Hydraulic Flow - Auxiliary	13.7 GPM
Hydraulic Flow - Traction	14.5 GPM
Hydraulic Pressure	3,000 psi
Length	82 in. / 208.3 cm
Length - With Bucket	102.8 in. / 261.3 cm
Loader Arms	Radial
Max Operating Height	97 in. / 246.3 cm
Oil Capacity	3.6 qt / 3.4 L
Rated Operating Capacity*	708 lbs / 321.1 kg
Reach - Fully Raised	31 in. / 78.7 cm
Reservoir Capacity	10 gal. / 37.8 L
Tip Capacity	2,023 lbs / 918 kg
Track Length	9.1 in. / 23.1 cm
Track Width	126.6 in. / 321.5 cm
Tracks	Camso Turf Friendly
Traction	Dual Hydrostatic Pump
Weight	2,862 lbs / 1,298 kg
Wheelbase	39 in. / 99.0 cm
Width	40.2 in. / 102.1 cm
Width - With Bucket	41.4 in. / 105.2 cm

Disclaimer

*Per ISO 14397-1
**As rated by the engine manufacturer. Starting January 1, 2025 the specifications on this engine will change to 23.2hp and 17.3kW

Accessories

Toro 55 Gallon Premium Engine Oil 10W-30 (Part # 121-6392)

Toro 55 Gallon Premium Engine Oil 10W-30. Designed for use in Toro equipment created by Toro engineers. If you are unsure of your equipment needs, do a model extreme serial number search to verify that this is the correct oil type for your equipment.

Toro 5 Gallon Premium Engine Oil 10W-30 (Part # 121-6393)

Toro 5 Gallon Premium Engine Oil 10W-30. Designed for use in Toro equipment created by Toro engineers. If you are unsure of your equipment needs, do a model extreme serial number search to verify that this is the correct oil type for your equipment.

Toro 55 Gallon Premium Engine Oil 15W-40 (Part # 121-6394)

Toro 55 Gallon Premium Engine Oil 15W-40. Designed for use in Toro equipment created by Toro engineers. If you are unsure of your equipment needs, do a model extreme serial number search to verify that this is the correct oil type for your equipment.

Toro 5 Gallon Premium Engine Oil 15W-40 (Part # 121-6395)

Toro 5 Gallon Premium Engine Oil 15W-40. Designed for use in Toro equipment created by Toro engineers. If you are unsure of your equipment needs, do a model extreme serial number search to verify that this is the correct oil type for your equipment.

Toro 5 Gallon PX Extended Life Hydraulic Fluid (Part # 133-8086)

Toro 5 Gallon PX Extended Life Hydraulic Fluid. Designed for use in Toro equipment created by Toro engineers. If you are unsure of your equipment needs, do a model extreme serial number search to verify that this is the correct oil type for your equipment.

Toro 55 Gallon PX Extended Life Hydraulic Fluid (Part # 133-8087)

Toro 55 Gallon PX Extended Life Hydraulic Fluid. Designed for use in Toro equipment created by Toro engineers. If you are unsure of your equipment needs, do a model extreme serial number search to verify that this is the correct oil type for your equipment.

Toro PX Extended Life Hydraulic Fluid - 1 Gallon/4pack (Part # 138-9460)

Toro PX Extended Life Hydraulic Fluid. Designed for use in Toro equipment created by Toro engineers. If you are unsure of your equipment needs, do a model extreme serial number search to verify that this is the correct oil type for your equipment.

Loader Bucket Attachment 4 Cubic Feet (Part # 22340)

Use this standard bucket for moving rock, dirt, sand or other materials off and around the job site. The hardened steel cutting edge offers improved cutting and digging capability for better performance to handle tough digging conditions and affords superior wear. Capacity = 4 cubic feet (1 cu. m.).

Adjustable Forks, TX 1000 Compact Utility Loaders (Part # 22341)

Loader Bucket Attachment (Part # 22409)

Light Materials Loader Bucket Attachment (Part # 22410)

Designed for moving light materials like chip-bark, mulch, snow and loam. The larger capacity bucket, 6.4 cubic feet (.2 cu. m.), is great for handling larger loads of lighter materials. The hardened steel cutting edge allows for improved cutting and digging capability for better performance to handle tough digging conditions and affords superior wear.

Utility Blade Attachment (Part # 22414)

The Toro Dingo hydraulic blade greatly increases the versatility of your Dingo system. This incredibly versatile attachment can be used for a variety of earth or snow moving jobs. Fill trenches where rows of trees have been planted or irrigation pipes have been installed. Keep your hydraulic blade working in the winter by pushing snow from sidewalks in one pass.

Bore Drive Head Attachment (Part # 22420)

The Toro® Dingo® boring unit allows you to dig under sidewalks and driveways to simplify irrigation and cable installations. Shorter rod lengths and the ability to lower the bore head below grade allow you to work in both confined and open areas, increasing your productivity.

Rod and Reamer Kit (Part # 22421)

Easily bore under driveways and sidewalks to simplify irrigation and cable installations. Use with Bore Drive Head attachment model 22420. Working depth: 19". Bits and reamers up to 3.5" in diameter.

Multi-Purpose Tool, Dingo (Part # 22423)

Power Box Rake Attachment (Part # 22426)

The Toro Power Box Rake is the perfect tool for seed bed and sod bed preparation. The rotary drum on the power box rake pulverizes rough soil, cuts high spots and fills low spots in one pass; while removing rocks and debris. Pure carbide teeth design produces the best possible seeded sub-soil, which promote superior moisture retention and rapid seed growth.

Stump Grinder Attachment (Part # 22429)

The Toro® Dingo® Stump Grinder easily attaches to either Dingo or Dingo TX compact utility loaders. Make grinding stumps quicker and more productive with the stump grinder attachment for your Toro Dingo.

Tree Fork Attachment (Part # 22438)

The Toro Dingo hydraulic tree forks can help you plant trees and large shrubs quickly and effortlessly, plus move all sorts of materials around your garden center or nursery. The Dingo Compact Utility Loader is especially easy to maneuver, helping you transport and position trees or shrubs exactly where you want them.

Cement Mixer Attachment (Part # 22442)

This unique attachment will mix and pour up to 200 pounds (90.7 kg) of dry cement. The specially designed auger flighting inside the cement bowl keeps the cement in the bowl during mixing. This same auger design permits cement to be poured into fence post holes with the posts in place!

Tiller Attachment (Part # 22445)

The Toro Dingo tiller attachment greatly increases the productivity and performance of your Dingo system. Break through hard soil conditions up to 6" (15.2 cm) deep. Avoid clogging the tiller by using one easy hand control to reverse the direction of the tiller to clear jams from rocks and debris.

Trencher Crumber (Part # 22464)

Spring design, trencher accessory to help clean out trenches

Trench Backfiller Attachment (Part # 22472)

Designed for time and money-saving efficiency, this attachment lets operators fill trenches in a single pass. Two sets of opposing augers direct the spoils from the sides of the trench back into the hole, while the filler levels off the work area and fluffs the turf on each side of the trench minimizing its footprint

High Torque Trencher Attachment (Part # 22473)

High-torque trencher head with heavy-duty drive system guarantees performance in the toughest soil conditions from rock to caliche. Dig trenches up to 50" (127 cm) below grade. Heavy-duty nose roller bearing and reversible abrasion-resistant boom give you years of dependable use.

High Speed Trencher Attachment (Part # 22474)

Ideal for fast, efficient trenching in most soil conditions. Great for cable, pipe or irrigation installations.

Trencher Crumber (Part # 22477)

Trencher accessory to help clean out trenches.

4-in-1 Bucket Loader Bucket Attachment (Part # 22478)

Designed to be used on the Dingo 323, 320-D, e-Dingo, TX 427, TX 525 and TX 1000 models, this attachment offers the versatility of 4 attachments. Use as a standard bucket, a leveler, a grapple rake and a blade.

Narrow Loader Bucket Attachment (Part # 22520)

Handle compact construction and remodeling sites by moving through 36" (91.4 cm) gates without a problem. This 35" (88 cm) wide bucket allows you to get through narrow spaces, including gates and doorways. Move rock, dirt, sand or other materials off and around the job site. Great for use on any Dingo® model equipped with narrow wheels and tires.

Standard Bucket with Spacer (Part # 22522)

Addresses MA hoisting regulation. Results in 450 lb. rated operating capacity. Capacity = 4.3 cubic feet.

Grapple Rake Attachment (Part # 22577)

The Toro grapple rake attachment allows operators to grab, drag, lift, and place materials with ease. The grapple has two heavy-duty cylinders capable of producing 3000 pounds of clamping force at the tine tips, insuring you can "grab-ahold" and not let go.

Snow Thrower Attachment (Part # 22585)

The Toro snow thrower attachment has enough power for heavy-duty performance in wet snow condition, plus a gentle touch for lighter conditions. The maximum hydraulic flow is 15.5 gpm and the chute articulation is electrical, so the operator never needs to worry about hand cranking.

Grapple Bucket Attachment (Part # 22590)

Designed for contractors looking for a bucket to grab, drag, lift and remove materials on residential, commercial and demolition sites. Designed to be used on the Dingo 323, 320-D, e-Dingo, TX 427, TX 525, TX 1000 and e-Dingo models.

eDingo 500 with 30 inch floor scraper attachment

30" Floor Scraper Attachment (Part # 22673)

Discover the ultimate solution for effortless flooring removal - the Toro 30” Floor Scraper. Crafted with a laser-cut, all-steel construction frame, this tool ensures high performance and durability. At just under 30” width, the floor scraper effortlessly maneuvers through doorways and tight spaces, streamlining your flooring removal tasks.

Operational efficiency is a priority, which is why the frame is specifically designed to allow operators clear visibility of the blade, enhancing precision and effectiveness.

The Toro 30” Floor Scraper tackles any challenge with ease. From vinyl, quarry, and ceramic tiles to carpet squares, paint, glue, and more, no stubborn flooring material stands a chance against its power. Say farewell to tedious and time-consuming removal processes.

High Torque Auger Attachment (Part # 22805)

In any drive head, there is a tradeoff between torque (power) and speed (revolutions per minute). The high torque head provides a large amount of torque to the auger at a slower speed. The high torque translates into the Dingo's capability to dig 30" (76.2 cm) holes up to 6' (1.8 m) deep in clay, gravel, sandstone and many other conditions where lower torque heads get stuck.

Mini Skid Steer Auger Attachment (Part # 22806)

This attachment swivels in all directions to create plumb holes on uneven terrain. The higher speed of this auger power head is ideal for augers up to 24" (61cm) in diameter. Quickly change between auger bit sizes to dig holes for fence posts, footings, irrigation heads and more!

18" Auger Bit (Part # 22814)

18" auger bit requires auger power head attachment 22805 or 22806.

24" Auger Bit (Part # 22815)

24" auger bit requires auger power head attachment 22805 or 22806.

30" Auger Bit (Part # 22816)

30" auger bit requires auger power head attachment 22805.

12" Auger Extension (Part # 22818)

Add extension to any auger to increase depth.

24" Auger Extension (Part # 22819)

Add extension to any auger to increase depth.

6" Full Flight Auger Bit (Part # 22820)

6" full flight auger bit requires auger power head attachment 22805 or 22806.

9" Full Flight Auger Bit (Part # 22821)

9" full flight auger bit requires auger power head attachment 22805 or 22806.

12" Full Flight Auger Bit (Part # 22822)

12" full flight auger bit requires auger power head attachment 22805 or 22806.

15" Full Flight Auger Bit (Part # 22823)

15" full flight auger bit requires auger power head attachment 22805 or 22806.

Vibratory Plow Attachment (Part # 22911)

The Toro® Dingo® vibratory plow attachment greatly reduces a contractor's time spent on irrigation and cable installations. Exclusively designed and built by Toro specifically for use on the Dingo, the vibratory plow optimizes pipe-pulling performance while minimizing turf damage during an installation. Also, use the chuted blade and spool carrier to install wire or cable.

Soil Cultivator Attachment (Part # 23102)

The soil cultivator is the ultimate attachment for soil preparation! This incredibly versatile attachment can be used to cultivate and level soil as well as blend landscape materials, compost and fertilizer. This attachment will also bury debris such as stones, soil clods and grass. It transforms rough terrain into a perfect planting bed in one pass.

Concrete Breaker, Dingo Compact Utility Loaders (Part # 23135)

Leveler Attachment (Part # 23165)

This versatile and highly productive tool is a must have attachment for all job sites. Use to grade, finish, and spread landscape materials, backfill trenches, and break up the turf. Also great for carrying and transporting materials around the job site.

30" Standard Bucket Attachment on the eDingo 500.

30" Standard Bucket (Part # 23174)

The 30" Standard Bucket is a powerhouse when it comes to moving concrete, rock, dirt, sand, or any other materials around the job site. Its slim 30" width allows for easy navigation through doorways and tight spaces, optimizing efficiency.

Designed with a hardened steel cutting edge, this bucket delivers exceptional cutting and digging capabilities, ensuring top-notch performance even in challenging digging conditions. Its superior wear resistance guarantees long-lasting durability.

With a generous capacity of just under 3 cubic feet (0.08 cu. m.), the 30" Standard Bucket is the perfect tool to tackle various material handling tasks on your project.

30" Adjustable Forks Attachment for the eDingo 500.

30” Adjustable Forks Attachment (Part # 23175)

Unlock the full potential of your Dingo system with the Toro Dingo 30” Adjustable Forks. Tailored specifically for the eDingo 500, these forks are the ultimate solution for seamless maneuvering through tight spaces during indoor construction and demolition tasks, elevating your productivity to new heights.

Versatility is the key to success, and these adjustable forks deliver just that. Perfectly suited for a wide range of material handling jobs, effortlessly move debris, pallets, and more around the job site with ease and efficiency. It's like having a reliable roving workstation that effortlessly transports heavy materials without causing fatigue.

Compatible with all Dingo models, except Dingo TXL 2000, our 30” Adjustable Forks are designed to integrate seamlessly with your existing equipment, saving you valuable time and effort.

30" Grapple Bucket attachment for the eDingo 500.

30" Grapple Bucket (Part # 23176)

The 30” Grapple Bucket is designed for contractors looking for a bucket to grab, drag, lift and remove demolition debris and materials on residential, commercial and demolition sites. With its slim 30” width, the bucket effortlessly maneuvers through doorways and tight spaces, streamlining your material handling tasks. Compatible with all Dingo models, except Dingo TXL 2000, our 30” Grapple Bucket is designed to integrate seamlessly with your existing equipment, saving you valuable time and effort.

Red Paint (Gallon) (Part # 361-11)

Genuine OEM Part

Semi-Gloss Black Paint (Part # 361-9)

Genuine OEM Part

Red Paint (Part # 5340)

Genuine OEM Part

Documents

Title	Documents
Dingo TX 700 Sell Sheet	PDF - Sellsheet-en-us
Dingo® Full Line Brochure	PDF - Brochure-en-us

Parts & Manuals

Select your model year from the options below to view parts & manuals.

22352 Serial #
416815872-999999999
415300000-416815871
415287954-415299999
412900000-415287953
400000000-412899999

Warranty

For complete product warranty information contact Toro Customer Service

22352 Product Warranty

**See dealer for Warranty details.
