98" ProCore® 1298 Turf Aerator

  • Model: 09716
See All Items in ProCore® 864/1298 Series Turf Aerator
Request a Demo
  • The oversized gearbox enhances capacity and durability for challenging turf conditions
  • Kevlar-reinforced belt drives ensure smooth, quiet operation and robust durability, enhancing operator comfort and the aeration experience
  • The ProCore® drive features precision balancing weights and coring heads modeled after a 6-cylinder engine, eliminating hopping, rocking, and vibrations. This reduces operator fatigue and enhances productivity during aeration
  • Depth control mechanism allows for quick and easy adjustments to hole depth, with a high gear ratio for effortless changes
  • Precision balancing weights eliminate hopping, rocking, and vibrations, reducing operator fatigue and enhancing productivity during aeration. They also enable the aerator to run in the up position, simplifying operation and improving turnaround efficiency
  • Easy access to service components and fewer grease points reduce maintenance time, increasing machine and operator productivity and enhancing technician efficiency
  • The RotaLink™ tine guide mechanism keeps tines vertical during ground entry and exit, resulting in clean holes for better-looking turf and easier top dressing. The ProCore® tine placement is near the roller, maintaining consistent depth over undulations
  • The efficient 98" (249 cm) aeration swath maximizes productivity across various forward hole spacings
  • A linked mechanism guides the tines to ensure they remain vertical during ground entry and exit, creating consistent, clean holes for better turf appearance and improved top dressing fill

Overview

The ProCore® 1298 takes the proven coring head technology from the very successful ProCore® 648s and combines it with an improved platform, the result is the most productive and durable large area aerator available today.

Features

Oversized Gear Box
Oversized Gear Box
The oversized gear box provides improved capacity and durability for the toughest turf conditions.

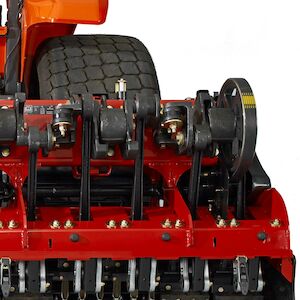

Belt Drive Aeration Head
Belt Drive Aeration Head
Kevlar reinforced belt drives provide smooth, quiet operation along with robust durability. This leads to increased operator comfort and a more enjoyable aeration experience.

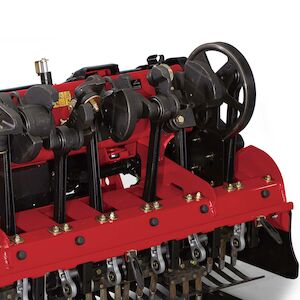

Precision-Balanced Drive System
Precision-Balanced Drive System
The ProCore® drive has precision balancing weights and each coring head is modeled after a 6-cylinder engine with precision balancing. This configuration eliminates hopping, rocking, and uncomforting vibration. This leads to less operator fatigue and a more productive and efficient aeration experience.

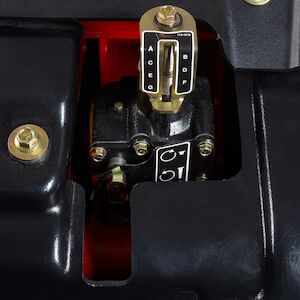

Depth Control Mechanism
Depth Control Mechanism
The depth control mechanism provides a quick and easy method for changing hole depth. The depth setting has a high gear ratio making changing depth a quick and effortless task.

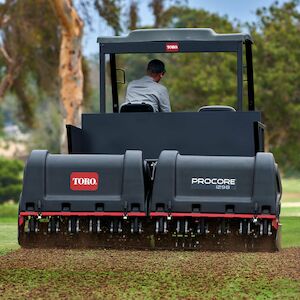

Operator Comfort & Ease of Use
Operator Comfort & Ease of Use
The precision balancing weights eliminates hopping, rocking, and uncomfortable vibration for less operator fatigue and a more productive and efficient aeration experience. It allows the aerator to run in the up position and simplifies operation and increases efficiency in turn around.

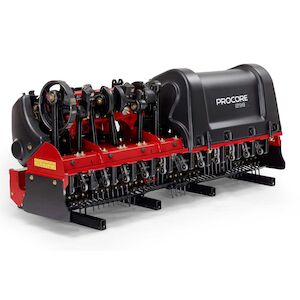

Reduced, Simplified Maintenance
Reduced, Simplified Maintenance
Easy access to service components and minimal grease points result in less maintenance and less time performing maintenance tasks. This leads to higher machine and operator productivity and allows technicians to be more efficient.
High Quality Holes at Consistent Depths
High Quality Holes at Consistent Depths
The RotaLink™ tine guide mechanism ensures tines remain vertical as they enter and exit the ground. This produces consistently clean holes for better looking turf and easier top dressing fill if required. The ProCore® tine placement is close to the roller, keeping them at a consistent depth as the operator travels over undulations.

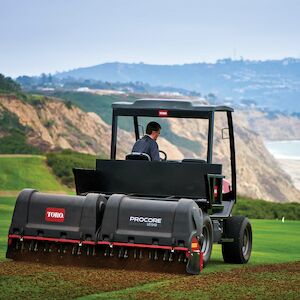

Increased Productivity
Increased Productivity
The efficient 98" (249 cm) aeration swath deliver maximum productivity for a broad range of forward hole spaces.

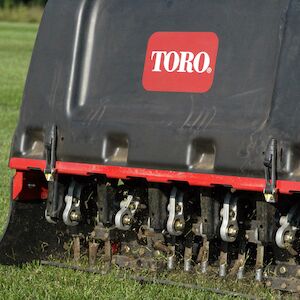

RotaLink™ Tine Guide Mechanism
RotaLink™ Tine Guide Mechanism
A linked mechanism that guides the tine actuation path and ensures they remain vertical as they enter and exit the ground. This produces consistent, clean holes for better looking turf and improved top dressing fill.

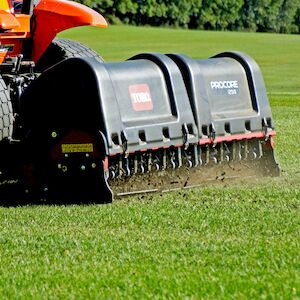

Impact Resistance System
Impact Resistance System
The compression springs combined with the independent coring head provide positive down pressure to ensure proper hole depth in the downward direction and provide a dampening affect in the upward direction when a large object is impacted during aeration.

Specifications

Aeration Type Shallow
Forward Hole Spacing Variable up to 4.5" (11.4 cm) (tractor dependent)
Height 38.5" (98 cm)
Lateral Hole Spacing 1.3 - 2.6" (3.3 - 6.6 cm) (tine head dependent)
Length 35" (89 cm)
Maximum Operating Depth (Working Depth) 5" (12.7 cm) max. Hole depths greater than 4 inches can only be achieved with 6.5 inch length tines and with turf holders removed. Some degradation in hole quality may be observed in this configuration.
Maximum PTO Speed 540 RPM
Number of Tine Heads 12
Operating Width (Working Width) 98" (249 cm)
Recommended Tow Vehicle Requirement 40 hp (30 kW) minimum, 50 hp (37.2 kW) recommended, 3-point Category 2 hitch
Weight 2,300 lbs. (1043 kg)
Width 101" (256.5 cm)

Accessories

4 Tine Head
4 Tine Head (Part # 09719)
Toro Genuine Parts Logo
Mini Tine Head Kit (Part # 09736)
Toro Genuine Parts Logo
Mini Tine Head Kit (Part # 09737)
Toro Genuine Parts Logo
Needle Tine Head Kit (Part # 09739)
3 Tine 3/4" Head Set
3 Tine 3/4" Head Set (Part # 09794)
4 Tine 3/4" Head Set
4 Tine 3/4" Head Set (Part # 09796)
3 Tine 7/8" Head Set
3 Tine 7/8" Head Set (Part # 09797)
Toro Genuine Parts Logo
Toro 5 Gallon Premium All-Season Gear Lube 80W-90 (Part # 108-1187)
Genuine OEM Part 108-1190
Toro 14 oz. All-Purpose Grease (Part # 108-1190)
Genuine OEM Part 108-1590
Toro 32 oz. Premium All-Season Gear Lube 80W-90 (Part # 108-1590)
Toro Genuine Parts Logo
ProCore CE Completion Kit (Part # 110-4693)
Sleeve Tool Assembly
Sleeve Tool Assembly (Part # 114-0590-01)
Toro Genuine Parts Logo
Guarded Driveshaft (Part # 115-2839)
3-Tine Short Turf Guard
3-Tine Short Turf Guard (Part # 120-1044)
4-Tine Short Turf Guard
4-Tine Short Turf Guard (Part # 120-1045)
4-Tine Long Turf Guard
4-Tine Long Turf Guard (Part # 120-1046)
5-Tine Short Turf Guard
5-Tine Short Turf Guard (Part # 120-1047)
6-Tine Short Turf Guard
6-Tine Short Turf Guard (Part # 120-1050)
3-Tine Long Turf Guard
3-Tine Long Turf Guard (Part # 120-1051)
5-Tine Long Turf Guard
5-Tine Long Turf Guard (Part # 120-1052)
6-Tine Long Turf Guard
6-Tine Long Turf Guard (Part # 120-1053)

Documents

Title Documents
2023-24 Titan Tines Catalog_040423.pdf PDF - Product Literature-en-us
2023-24 Titan Tines Chart_040423.pdf PDF - Product Literature-en-us
ProCore 864/1298 Sell Sheet PDF - Sellsheet-en-us



Warranty

2-Year Limited / 500 Hour

**See dealer for Warranty details.
