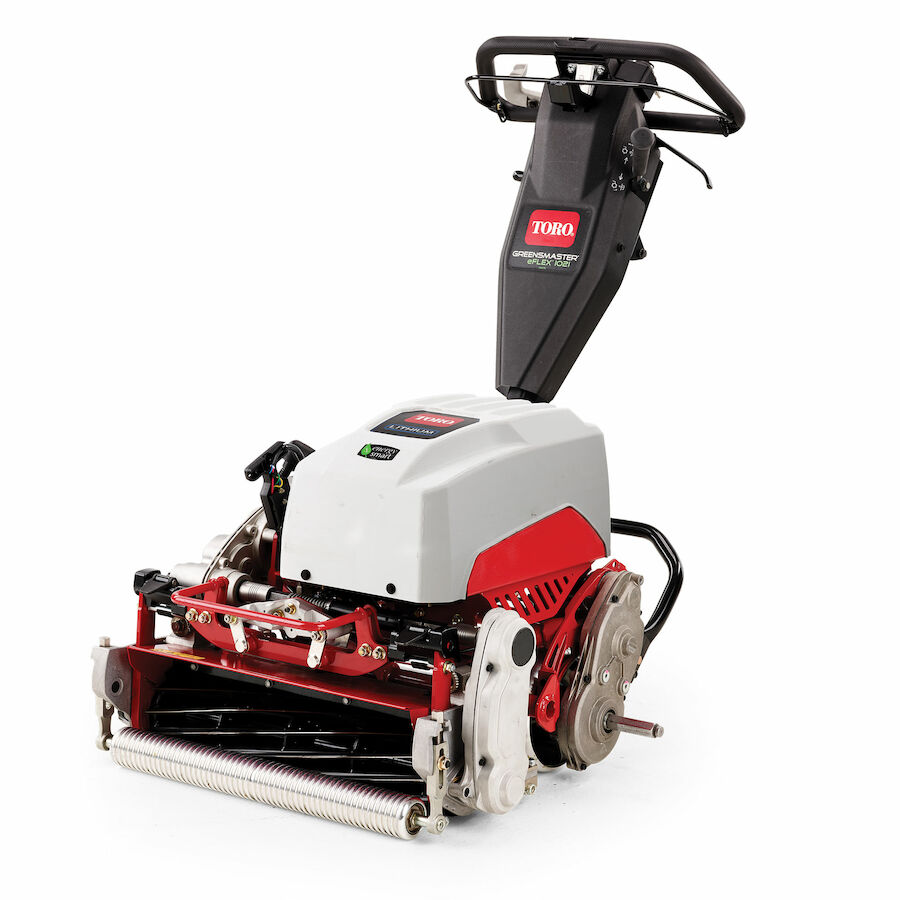

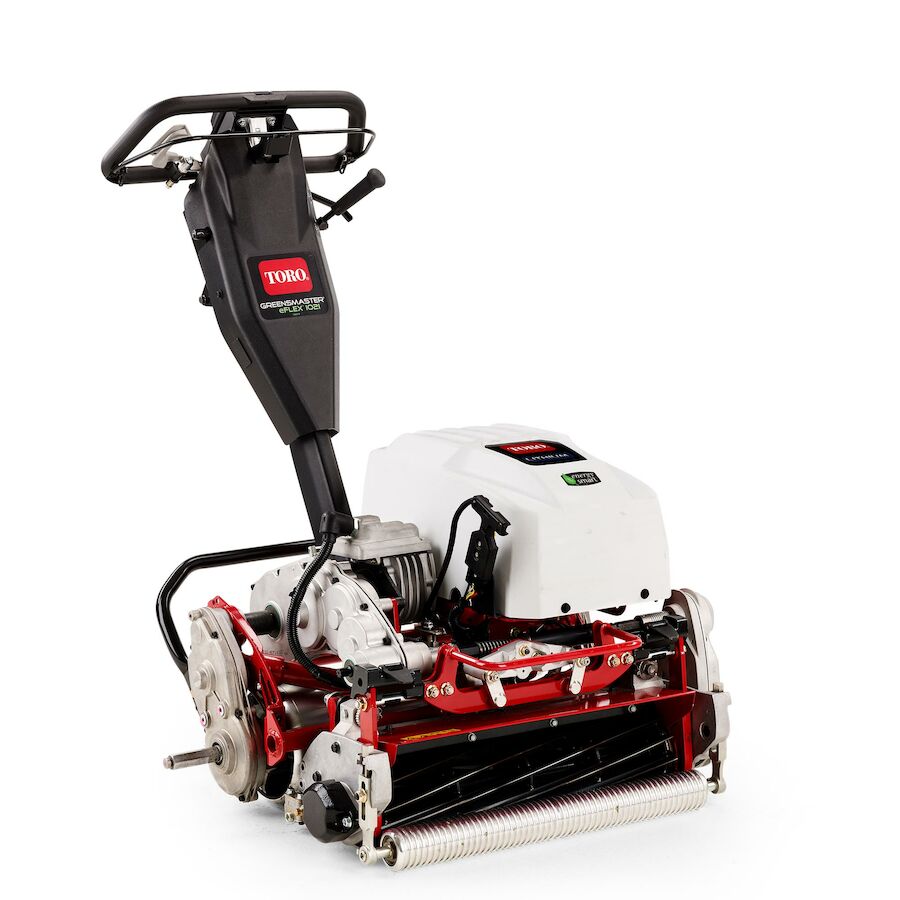

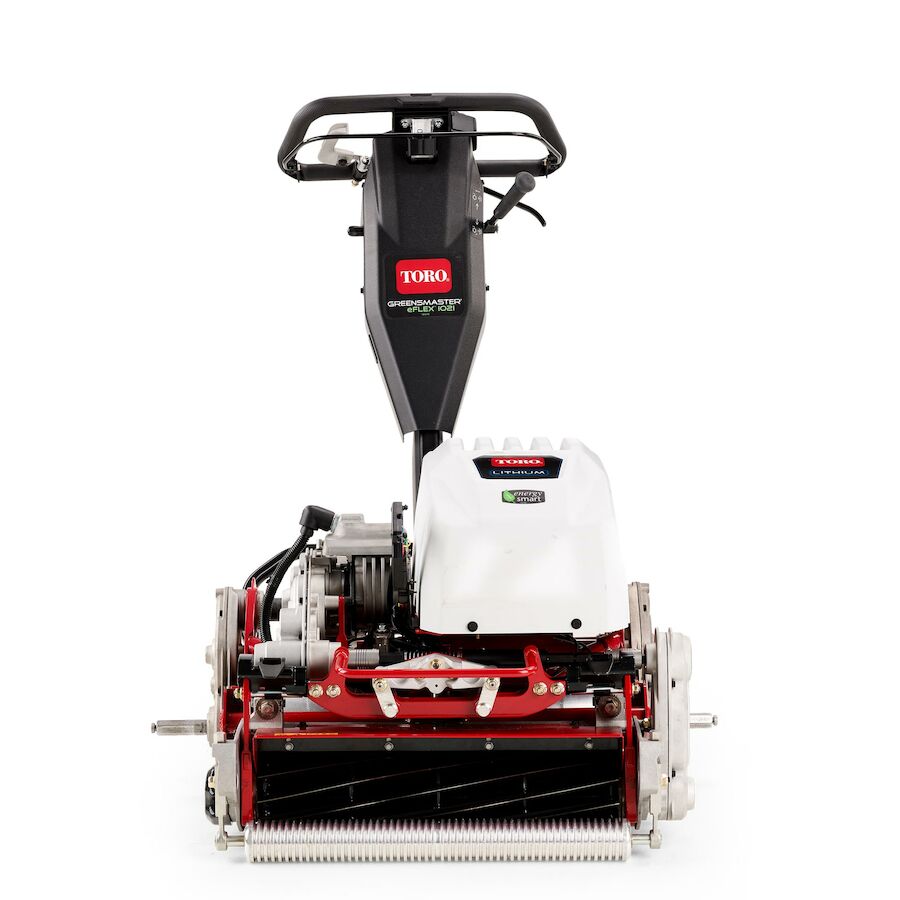

Greensmaster® eFlex 1021

  • Model: 04865
See All Items in Greensmaster® Electric Fixed/Flex™ Series
Request a Demo
  • Flex suspension allows the cutting unit to easily follow the contours of the green
  • Switch from cutting greens to cutting a fairway in just minutes
  • Ample battery power and run time to mow up to 44,000 sq-ft (over 4000 sq-meters)
  • All operator controls are within easy reach
  • Telescoping handle adjusts for different heights, reducing fatigue and improving cut quality
  • Two rubber grommets reduce minor height-of-cut oscillations caused by changes in handle pressure
  • Engage the reel from a convenient, easy to reach location
  • Provides long life and best-in-class transmission durability
  • A single bail combines safety and ease-of-operation
  • Clip frequency can easily be changed in the field to mow the perimeter, collars etc.
  • Disengage the traction with a simple lever twist
  • Deliver a consistent, high quality cut and superior after cut appearance, while reducing maintenance

Overview

Extremely quiet, the all-electric Toro® Greensmaster eFlex1021 is among the quietest and most efficient walk greensmowers on the market today. Harnessing the power of lithium-ion battery technology, this mower take electrical efficiency to a new level, allowing operators to mow up to 44,000 sq. ft.* of turf on a single charge. Additionally, a convenient LCD screen indicates an ongoing battery charge status and also displays useful information such as machine hours, diagnostics, and overall battery health. This unit is designed for minimal maintenace and long, productive life saving labor and operational costs.

Features

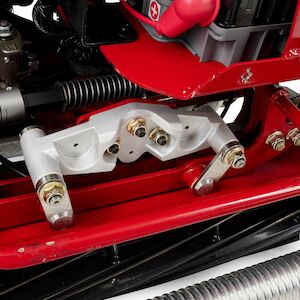

Patented Flex Suspension Technology
Patented Flex Suspension Technology
Flex suspension allows the cutting unit to easily follow the contours of the green and delivers a superior quality of cut.

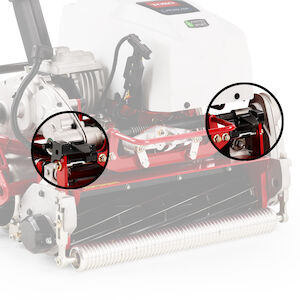

Tool-free Cutting Unit Removal
Tool-free Cutting Unit Removal
Changing cutting units is simple with the tool-free quick-change levers. Easily swap out cutting units in seconds and minimize maintenance downtime.

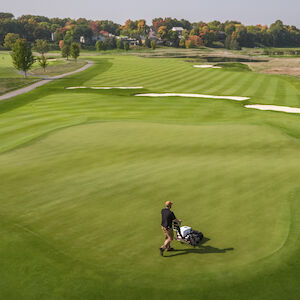

Proven Lithium-Ion Technology
Proven Lithium-Ion Technology
Battery capacity with ample power and run time to mow up to 44,000 sq-ft (over 4000 sq-meters). Balanced battery management and on-board electronics monitor the mower to automatically optimize battery life.

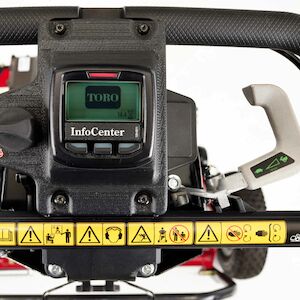

Easy-Reach Adjustable Throttle
Easy-Reach Adjustable Throttle
All operator controls are within easy reach to perfect the mowing process, improve cut consistency, and enhance control – in normal and tight turn-around situations.

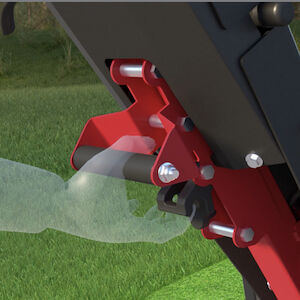

Telescoping Handle
Telescoping Handle
Engineered to accommodate operators of different heights, for mowing in a natural upright position. Leads to less fatigue and a superior cut. Adjustable to 5 distinct handle positions.

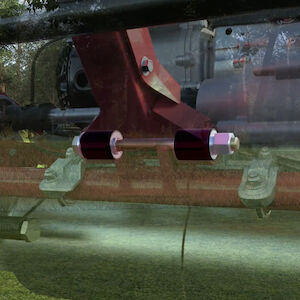

Handle Isolation Mounts
Handle Isolation Mounts
Two rubber grommets eliminate minor oscillations in Height-of-Cut caused by walking strides. Delivers a consistent cutting height on each and every green for optimal playability.

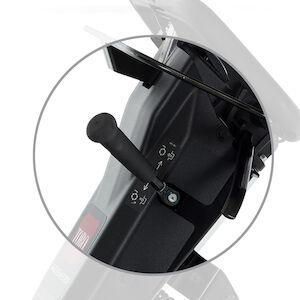

Reel Engagement Lever
Reel Engagement Lever
Convenient, easy to reach location to engage reel from the operator position.

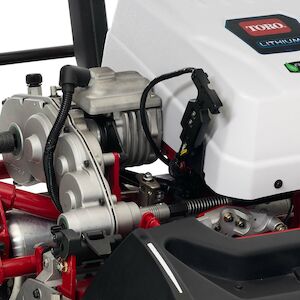

Durable Gear Drive Transmission
Durable Gear Drive Transmission
Provides long life and best-in-class transmission durability. Lubricated for life.

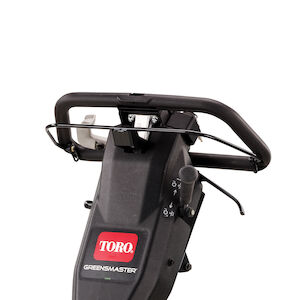

Dual Function Bail
Dual Function Bail
A single bail combines safety and ease-of-operation. Convenient operation allows the mower to slow down or come to a full stop during turn-arounds without disengaging traction to line up for next mowing pass. Also ideal when using turn-around mats to preserve collar health.

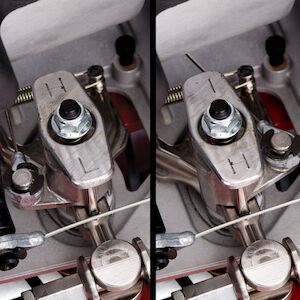

Hi-Lo Clip Rate Knob
Hi-Lo Clip Rate Knob
Clip frequency can easily be changed in the field to mow the perimeter, collars etc. The quick-change feature also can be locked out for added control.

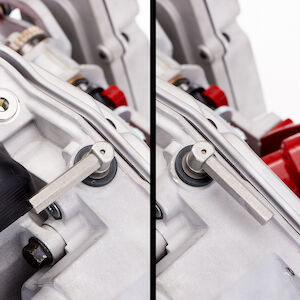

Traction Release Lever
Traction Release Lever
Disengage the traction with a simple lever twist. Getting around the shop has never been easier!

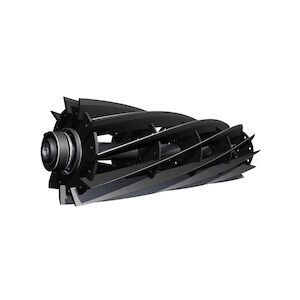

EdgeSeries™ Reels
EdgeSeries™ Reels
Dual Precision Adjustment (DPA) cutting units – featuring Toro’s EdgeSeries™ reels combine to deliver a consistent, high quality cut and superior after cut appearance, while reducing maintenance with improved reel edge retention.
Watch the Video

Specifications

Blade Style/Type Reel
Blade Type (Description) EdgeSeries™ DPA radial reels.
Charger

Voltage and current controlled with CAN communication to manage battery health. Complies to max voltage and current limits directed by the battery management system. Off-board high efficiency 650W smart charger.

  • AC input voltage 100-240VAC
  • AC input Frequency 50/60 Hz
  • Max input Current 7.5 A
  • Max charge time, empty to full: 4 hrs.
Clip Frequency/Backlapping Quick-change dual-speed gear drive, combined with positive drive belt - four possible reel speed/clip settings. Standard backlapping.
Collection System Volume Molded polyethylene with integrated graphics highlighting overlap guidelines, vented for high-efficiency collection.
Controls Start/On/Off (‘ignition’) switch, LCD Information Center (reports multiple parameters including hours, battery life, faults, diagnostics, backlap control, etc.) throttle, dual function traction/safety bail, reel engage lever, service/parking brake lever, optional light switch.

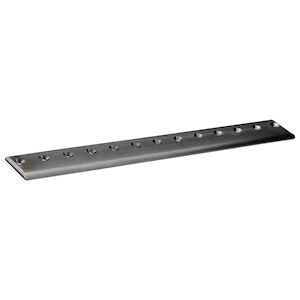

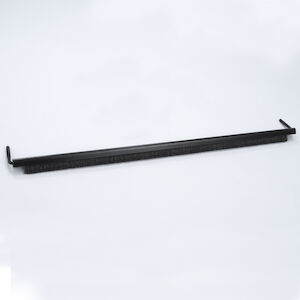

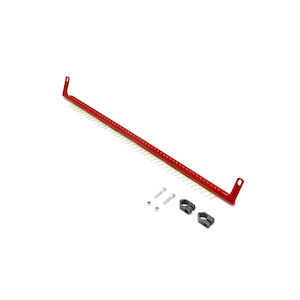

Cutting Unit Accessories 11, 14-Blade Flex ES Cutting Unit, Front and Rear Roller Options, Bedknife Options, Groomer Options, Scraper Options, Tools and Maintenance Options.
Cutting Unit Suspension Flex
Cutting Unit Type/Configuration Semi-floating cutting unit separable from drive unit, pivoting around reel centerline (pitch axis) and pivoting around bedknife centerline side to side (roll axis).
Drivetrain Electric
Fuel / Power Source Electric
Ground Speed - Forward 0 - 5.3 mph (0 - 8.5 km/h)
Handle Loop handle with telescoping adjustment of 5" (12.7 cm) total travel, rubber isolated to minimize operator influence during mowing.
Height of Cut Range For Greens: (Spacer Position One) 0.062" - 0.250" (1.5 mm - 6 mm) For Tees: (Spacer Position Two) 0.125" - 0.375" (3 mm - 9 mm) High Height of Cut Kit: 0.375" - 1.00" (9 mm - 25 mm)
Kickstand Standard
Main Frame/Chassis Fully modular design allows quick disassembly for service/maintenance of all major components.
Mowing Speed 2.0 - 3.5 mph (3.2 - 5.6 km/h)
Number of Blades 11, 14

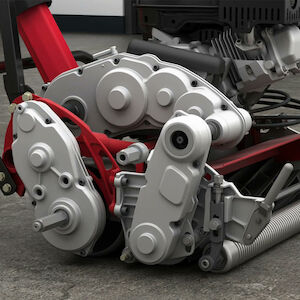

Optional Accessories LED Light Kit, Cutting Unit Light Kit Mount, Push Broom Kit, Wheel Kit, Backlap Access Kit, Wireless Hour Meter, High Height of Cut Kit, Charger, Replacement Battery
Parking/Service Brakes Service/parking - band type.
Power Train (Engine Description) Lithium-Ion battery pack – nominal 51.4-Volt 29.4 A-Hr (1.51 kW-hr) with integrated battery management system utilizing CAN communication with the machine controller and charger. Single battery affixed to unit and charged onboard. Brushless permanent magnet DC motor with integral motor controller and helical gear reduction.
Reel Diameter 5 in. (12.7cm)

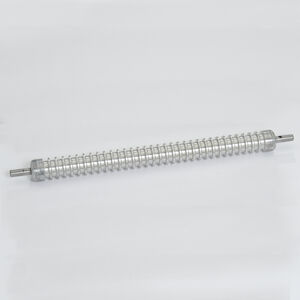

Rollers Front Roller: Optional – must be ordered. Rear Roller: Aluminum full roller 2" (5.1 cm) diameter with sealed bearings.
Starting Key Start
Tires - Rear Optional - Two quick-detachable pneumatic tires (3" x 3.25" - 6")
Traction Drive Gear
Traction Drive (System) Permanent Magnet DC motor directly coupled to a fully gear-driven transmission with traction differential and traction disconnect to ease movement during service/maintenance operations. Interchangeable drum drive gear cases.
Traction Drum Tapered traction drum for improved after cut appearance.
Weight 292 lbs. (132.5 kg) with 11-blade cutting unit and aluminum Wiehle roller.
Width of Cut 21" (53.3 cm)

Disclaimer

*Dependent on machine configuration, turf conditions, and battery age.
