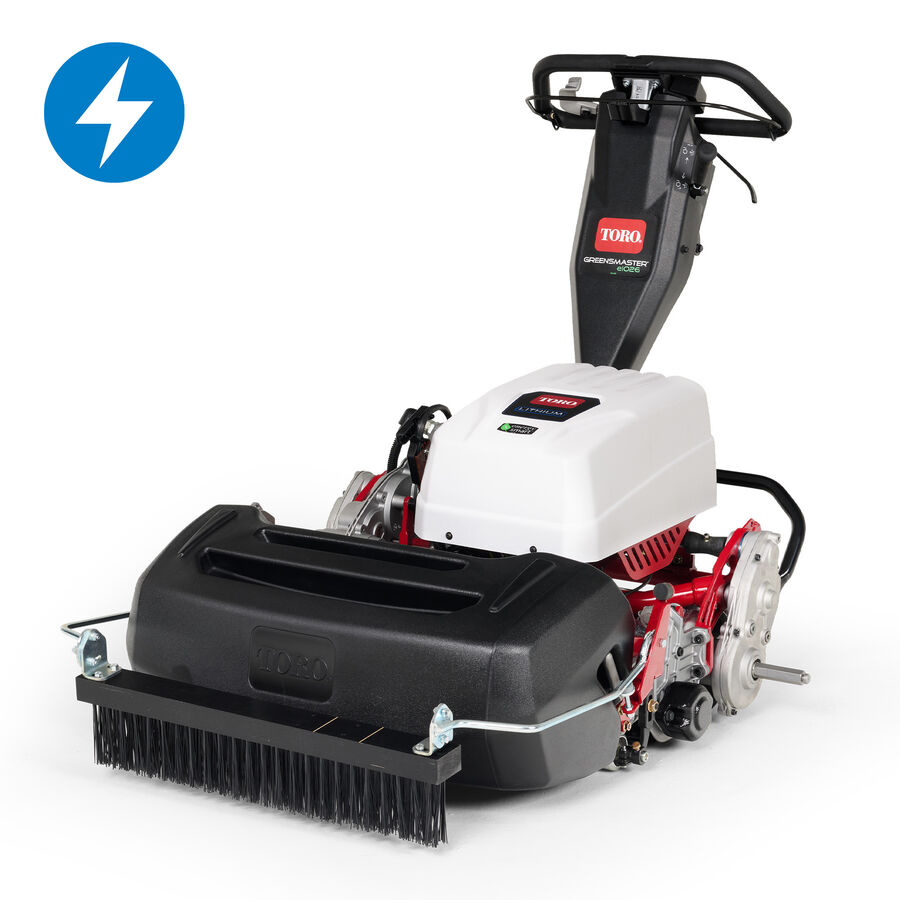

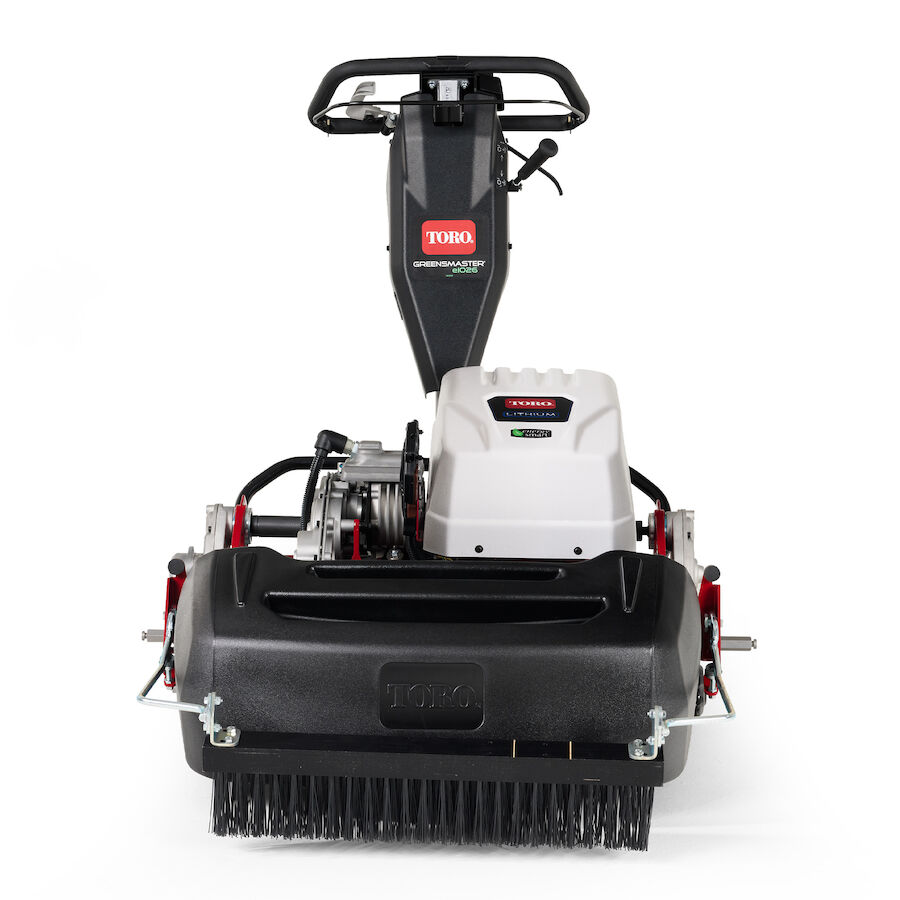

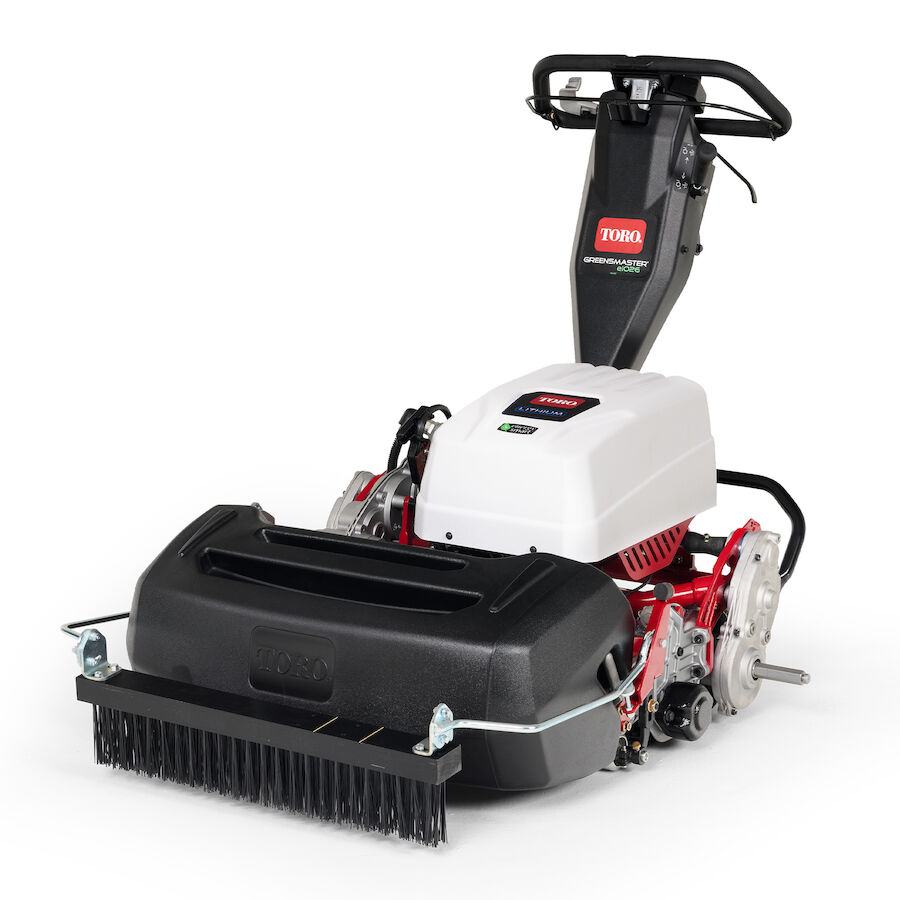

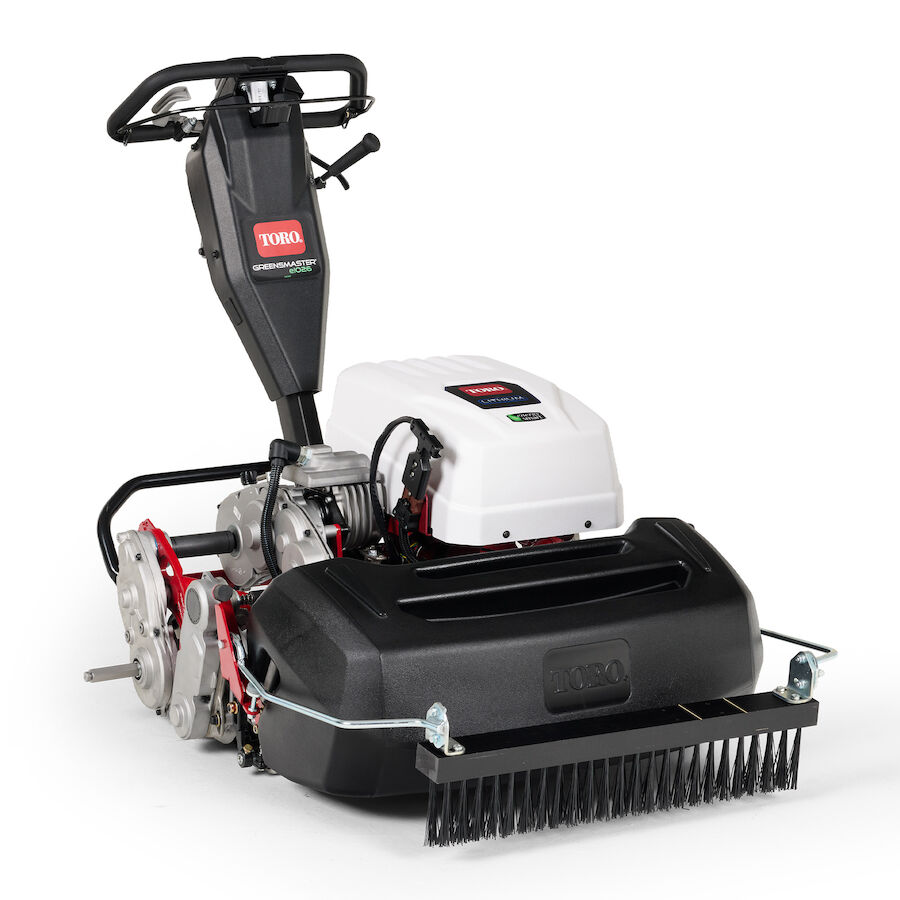

Extremely quiet, the all-electric Toro® Greensmaster e1026 is among the quietest and most efficient walk greensmowers on the market today. Harnessing the power of lithium-ion battery technology, this mower take electrical efficiency to a new level, allowing operators to mow up to 44,000 sq. ft. of turf on a single charge. Additionally, a convenient LCD screen indicates an ongoing battery charge status and also displays useful information such as machine hours, diagnostics, and overall battery health. This unit designed for minimal maintenace and long, productive life saving labor and operational costs.
| Blade Style/Type | Reel |
|---|---|
| Blade Type (Description) | EdgeSeries™ DPA radial reels. |
| Charger | Voltage and current controlled with CAN communication to manage battery health. Complies to max voltage and current limits directed by the battery management system. Off-board high efficiency 650W smart charger. *AC input voltage 100-240VAC *AC input Frequency 50/60 Hz *Max input Current 7.5 A *Max charge time, empty to full: 4 hrs. |
| Clip Frequency/Backlapping | Quick-change dual-speed gear drive, combined with positive drive belt - four possible reel speed/clip settings. Standard backlapping. |
| Controls | Start/On/Off (‘ignition’) switch, LCD Information Center (reports multiple parameters including hours, battery life, faults, diagnostics, backlap control, etc.) throttle, dual function traction/safety bail, reel engage lever, service/parking brake lever, optional light switch. |
| Cutting Unit Accessories | 8 or 11-Blade DPA Cutting Unit, Roller Options, Groomer Options, Scraper/Brush Options, Bedknife Options, Tools and Maintenance Options. |
| Cutting Unit Suspension | Fixed |
| Cutting Unit Type/Configuration | Detachable cutting unit allows easy removal for service / maintenance or cutting unit exchange for different applications. |
| Drivetrain | Electric |
| Ground Speed - Forward | 0 - 5.3 mph (0 - 8.5 km/h) |
| Handle | Loop handle with telescoping adjustment of 5" (12.7 cm) total travel, rubber isolated to minimize operator influence during mowing. |
| Height of Cut Range | For Greens: (Drum Position One) 0.062" - 0.312" (1.5 mm - 8 mm) For Tees: (Drum Position Two) 0.25" - 0.625" (6 mm - 16 mm) High Height of Cut Kit: (Drum Position Two) 1.18" (30 mm) |
| Kickstand | Standard |
| Main Frame/Chassis | Fully modular design allows quick disassembly for service/maintenance of all major components. |
| Mowing Speed | 2.0 - 3.5 mph (3.2 - 5.6 km/h) |
| Number of Blades | 11, 8 |
| Optional Accessories | LED Light Kit, Cutting Unit Light Kit Mount, Push Broom Kit, Wheel Kit, Backlap Access Kit, Wireless Hour Meter, High Height of Cut Kit, Charger, Replacement Battery |
| Parking/Service Brakes | Service/parking - band type. |
| Power Train (Engine Description) | Lithium-Ion battery pack – nominal 50.4-Volt 26.7 A-Hr (1.51 kW-hr) with integrated battery management system utilizing CAN communication with the machine controller and charger. Single battery affixed to unit and charged onboard. |
| Reel Diameter | 5 in. (12.7cm) |
| Reel/Cylinder Drive | Mechanical/Belt |
| Rollers | Front Roller: Optional – must be ordered. |
| Starting | Key Start |
| Tires - Rear | Optional - Two quick-detachable pneumatic tires (3" x 3.25" - 6") |
| Traction Drive | Gear |
| Traction Drive (System) | Permanent Magnet DC motor directly coupled to a fully gear-driven transmission with integral traction differential and traction disconnect to ease movement during service/maintenance operations. Interchangeable drum drive gear cases. |
| Traction Drum | Dual position traction drum with positions for contour following or forward weight bias at higher heights of cut. |
| Weight | 256 lbs. (116.1 kg) with 11-blade cutting unit and aluminum Wiehle roller. |
| Width of Cut | 26" (66 cm) |
