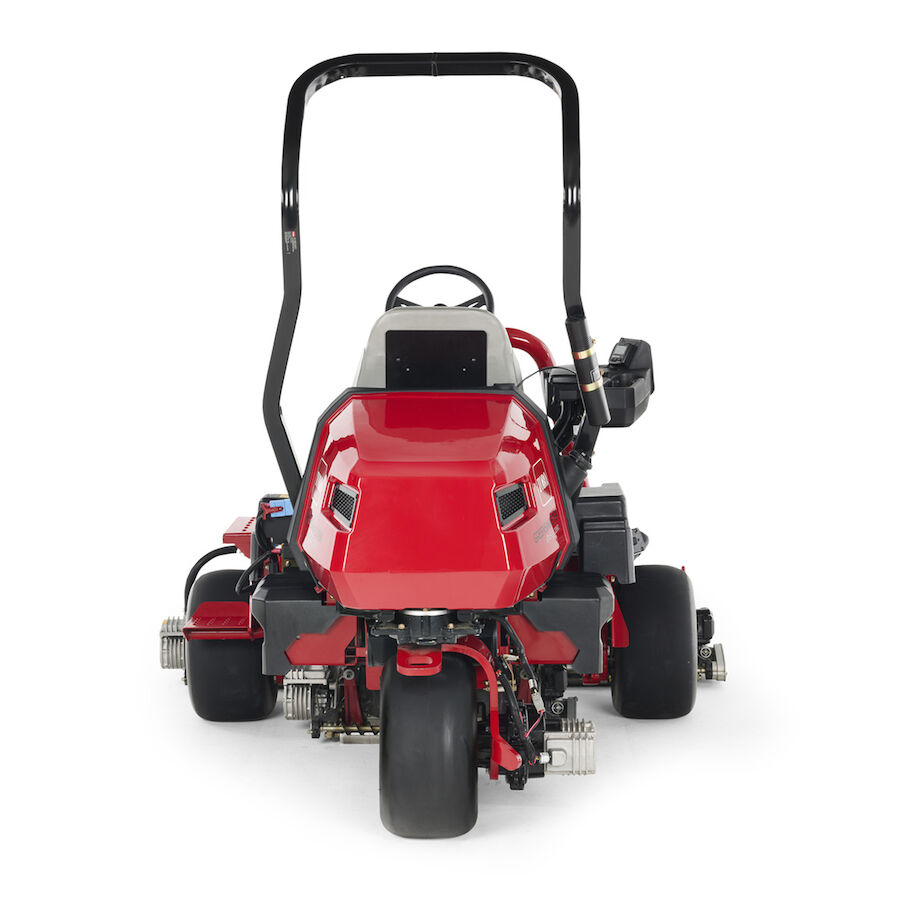

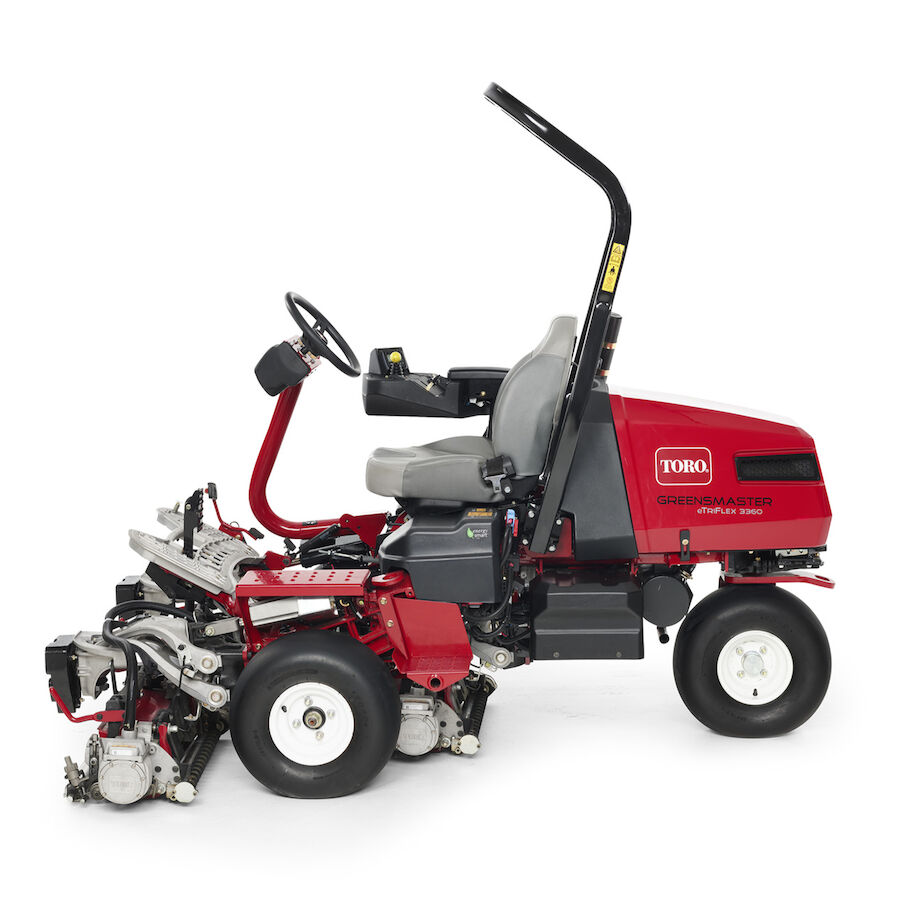

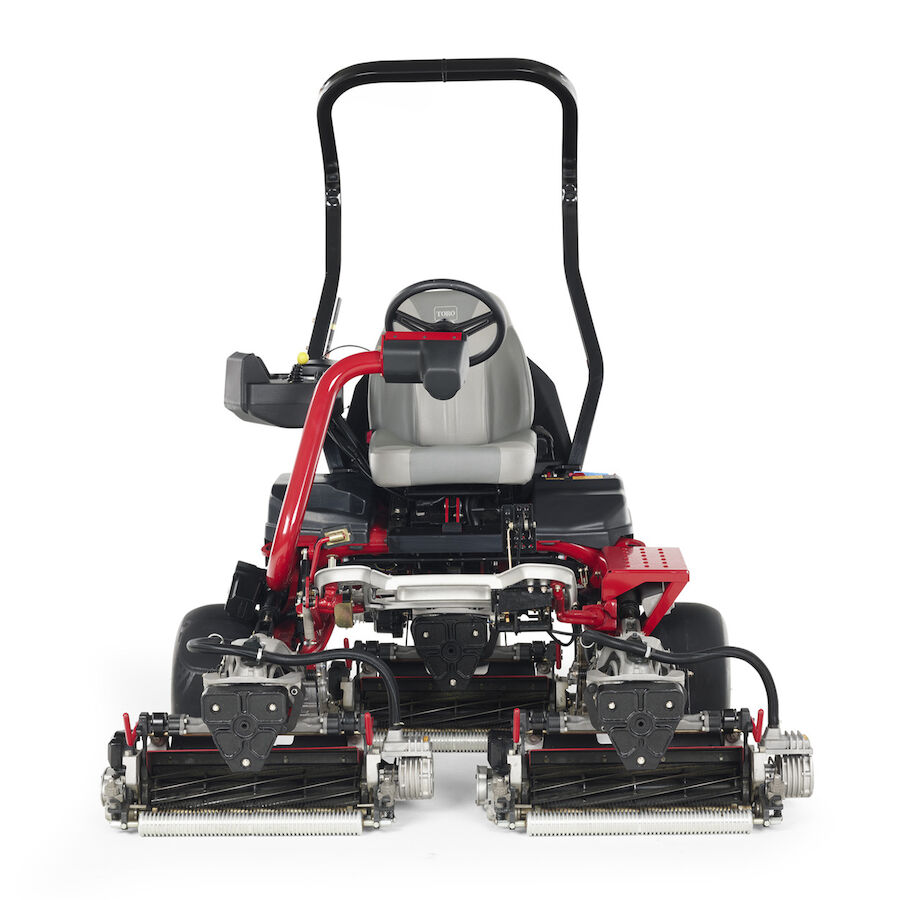

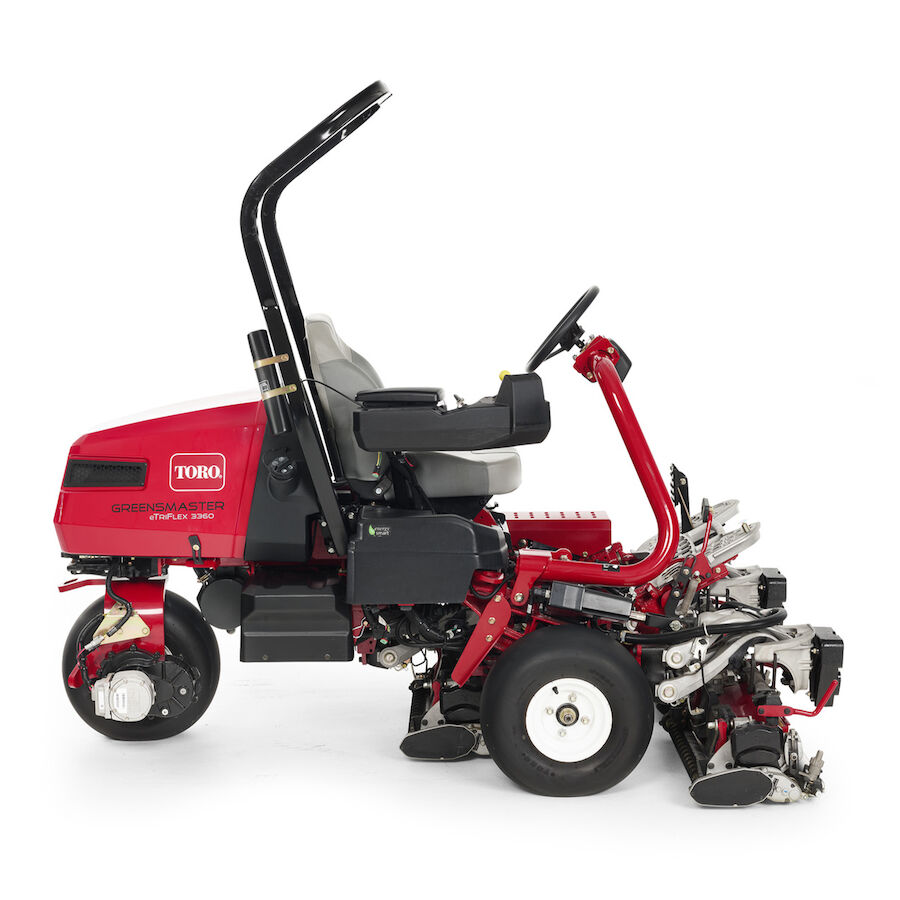

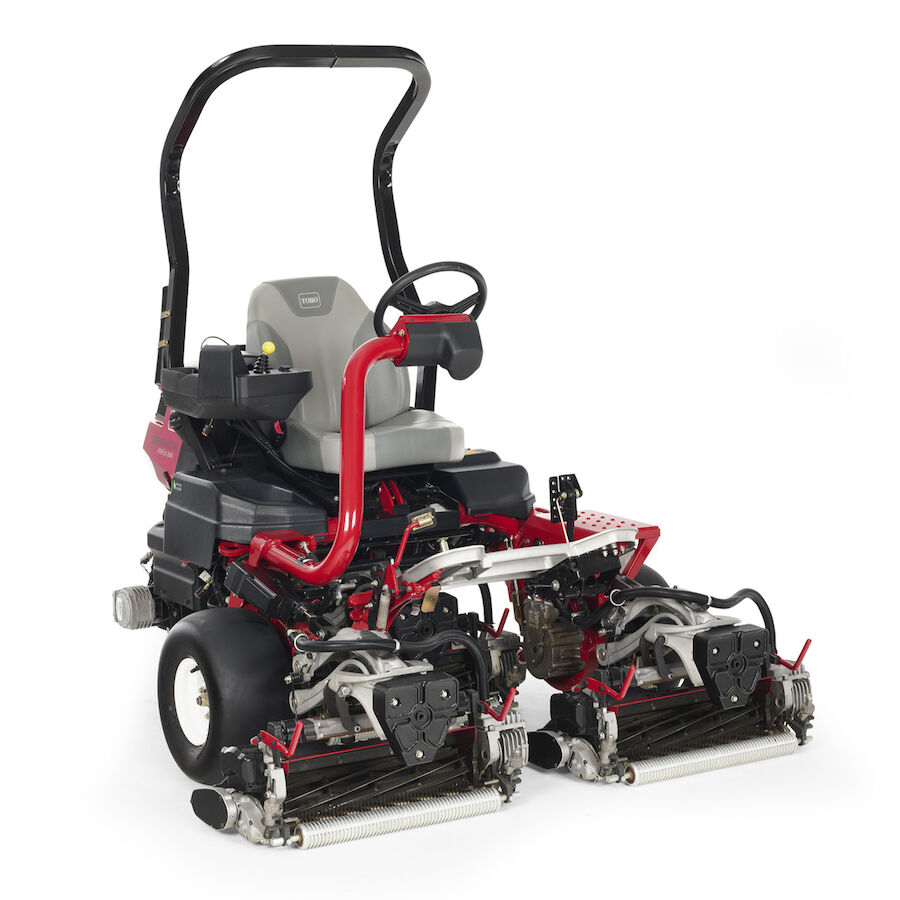

Greensmaster® eTriFlex® 3360

  • Model: 04580
See All Items in Greensmaster® eTriFlex® Series
Request a Demo
  • Each reel motor delivers 1.5 horsepower (1.1 kW) for reliable power
  • Clipping capture system retains nearly all grass clippings for a cleaner and healthier cut
  • Redesigned tires deliver uniform loading across the entire cross-section to reduce visible tire tracks
  • Sleep easy knowing that leaks or even the risk of hydraulic leaks are a thing of the past
  • System will sense and automatically engage the parking brake when operator leaves the seat
  • Amazingly quiet noise level minimizes early morning disturbances
  • Integrated "Flex" linkage system allows cutting units to pivot around the center of the front roller
  • Provides braking power to stop reels from spinning when cutting units are disengaged
  • The suspension system slightly lifts the inside of the cutting units during turns, ensuring a more consistent cut
  • Operational controls are based on the same platform as existing Greensmaster TriFlex models
  • Onboard computer system calculates the exact timing to raise/lower the rear cutting unit
  • Suspension system maintains full floatation range to prevent gouging or scalping when going over undulations
  • Most advanced cutting unit in the industry
  • Automatically slows the speed of the machine when aggressive turns are made
  • Control both reel and wheel speeds to minimize scuffing during clean-up passes
  • Perform routine maintenance and repairs with easy access to the center cutting unit
  • Switch from cutting greens to cutting a fairway in just minutes
  • Provides up to 20% fuel savings over comparable Triplex mowers
  • Improved traction to ensure positive two-wheel drive while minimizing tire scrubbing
  • Deliver a consistent, high quality cut and superior after cut appearance, while reducing maintenance
  • Independent reel motors ensure a consistent clip during clean-up cuts and speed changes

Overview

The Greensmaster® eTriFlex® models carry no hydraulic fluid and utilize all-electric components for traction, steering, lift and cutting. These EnergySmart® models are operationally friendly with noticeable noise reductions, operational cost savings, and other meaningful improvements to complement the ever-important enhancements in cutting performance.
Combining the innovative, Double A-Arm Suspension System with industry-leading Flex technology, the cutting units float freely over any terrain. The new Radius Dependent Speed (RDS™) System, in combination with the Lift-In-Turn cutting unit leveling feature virtually eliminates the effect known as “Triplex-Ring”. This substantially improves both the aesthetics and playability of the green.
Superior cutting performance is only the beginning. The patented Lift-Gate Footrest, Tool-Free QuickChange™ cutting units, Automatic “Slow-in-Turn” during Transport and Auto-Brake on Operator Dismount are just a few of the many new features that provide added versatility, simplified service, and ultimately, more productivity.


Electric = Electric Model

Features

All-Electric Reel Drive
All-Electric Reel Drive
In addition to eliminating hydraulic leaks, each reel motor has a nominal 1.5 horsepower (1.1 kW). This translates into the power you need when you need it for unparalleled performance in your most challenging cutting applications.

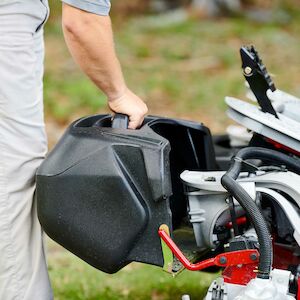

Superior Clippings Capture
Superior Clippings Capture
Redesigned clipping capture system maintains a consistent gap between the basket and reel to retain nearly all grass clippings for a cleaner and healthier cut. In addition, a discharge shield forces clippings inside of basket and minimizes "blow-by".

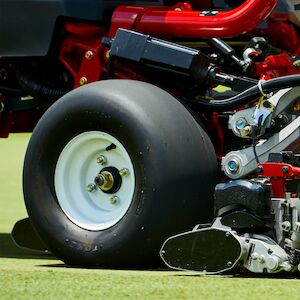

Balloon Style Tires
Balloon Style Tires
Tires have been redesigned to deliver uniform loading across the entire cross-section (load footprint area) to eliminate side wall loading that can create visible tire tracks.

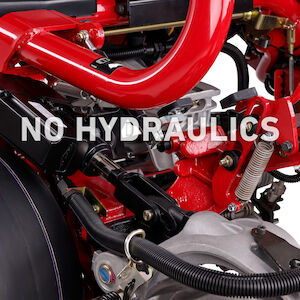

No Onboard Hydraulic Fluid
No Onboard Hydraulic Fluid
With traction, lift, steering, and reel drive all being electric, there are no hydraulic systems on the eTriFlex Series of mowers. Sleep easy knowing that leaks or even the risk of hydraulic leaks are a thing of the past.

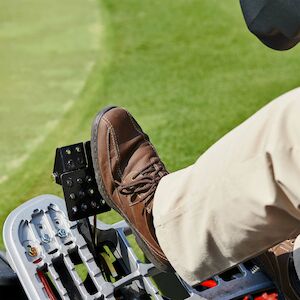

Auto-Brake on Operator Dismount
Auto-Brake on Operator Dismount
If the operator leaves the seat when the mower is running and fails to engage the parking brake, the system will sense it and automatically engage the parking brake to ensure the operator’s safety and avoid the machine rolling away.
Amazingly Quiet Operation
Amazingly Quiet Operation
The 3370 & 3360 eTriFlex models run at an amazingly quiet noise level 66.5 & 73 dBA (respectively) which minimizes early morning disturbances and results in 50% lower perceived bystander noise level.
Proven Flex Suspension (Patented)
Proven Flex Suspension (Patented)
Superior contour following capability utilizes an integrated "Flex" linkage system to allow cutting units to pivot around the center of the front roller to master undulations and prevent side-to-side scrubbing of the putting surface.
Stored Energy
Stored Energy
Eliminates clip marks at the startup of a mowing pass and provides braking power to stop reels from spinning when cutting units are disengaged for safer operation.
Lift-In-Turn Cutting Units
Lift-In-Turn Cutting Units
The suspension system is designed to provide a slight lift to the inside of the cutting units during turns to deliver a consistently level cut and to reduce "triplex ring" for improved playability and turf health.

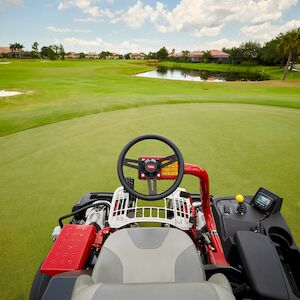

Familiar Operation & Controls
Familiar Operation & Controls
The operational controls for the eTriFlex series of mowers are based on the same platform as existing Greensmaster TriFlex models. This allows operators that are familiar with the TriFlex models to immediately begin running the eTriFlex models with minimal training or instruction. Just mow!
Speed Dependent Reel Drop and Even Cut Line
Speed Dependent Reel Drop and Even Cut Line
When the operator is raising or lowering the cutting units while in motion, the onboard computer system calculates the exact timing to raise/lower the rear cutting unit in order to match the cut line of the front two cutting units. This allows for consistent and precise cutting maneuvers from green to green.

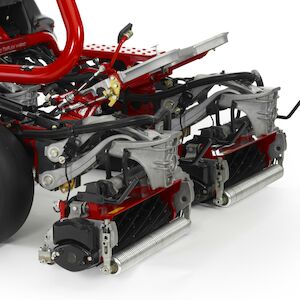

Double A-Arm Suspension
Double A-Arm Suspension
The suspension system maintains full floatation range to prevent gouging or scalping when going over undulations.
DPA Cutting Units
DPA Cutting Units
The most advanced cutting unit in the industry:
  • Only two adjustments
  • Superior height-of-cut retention
  • No daily greasing (stainless steel bearings)
  • Consistent cutting edge regardless of reel wear (patented)
  • Smallest bedknife increment adjustments .007 inch (.178mm)

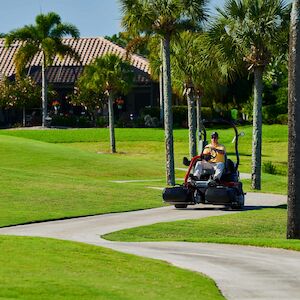

Slow-in-Turn
Slow-in-Turn
When mowing or in transport mode, the eTriFlex Series mowers sense the steering rate of change and automatically slows the speed of the machine when aggressive turns are made. This results in reduced turf damage from skidding wheels, and provides the operator with ample control of the mower.
Radius Dependent Speed Systems (RDS™)
Radius Dependent Speed Systems (RDS™)
The RDS™ Systems control both the speed of the reels as well as the wheels to provide a consistent even clip-rate across the cutting heads and minimize scuffing from the wheels during clean-up passes. The RDS system virtually eliminates “Triplex Ring” and ensures high quality after cut appearance.
Exclusive Lift-Gate Footrest
Exclusive Lift-Gate Footrest
Easy access to the center cutting unit facilitates routine maintenance and repairs, simplifies adjustments, and eliminates the need to put the traction unit on a lift for cutting unit service saving you time, money, and frustration.
Tool-Free, Quick-Change Cutting Units
Tool-Free, Quick-Change Cutting Units
A single operator can go from cutting Greens at 0.125" (3.2 mm) to cutting a Fairway at ¾" (19 mm) in just minutes. The tool-free, quick-change cutting units make it as easy as 1-2-3.
Fuel Savings
Fuel Savings
The eTriFlex 3360 (Engine/Generator Model) provides up to 20% fuel savings over comparable Triplex mowers.
Superior Traction
Superior Traction
Both front wheels are powered by electric traction motors with a gear reduction. The posi-traction system improves traction over a hydraulic or mechanical differential to ensure positive two-wheel drive while minimizing tire scrubbing. *An optional 3WD Kit is available for more severe hill climbing capabilities.
EdgeSeries™ Reels
EdgeSeries™ Reels
Dual Precision Adjustment (DPA) cutting units – featuring Toro’s EdgeSeries™ reels combine to deliver a consistent, high quality cut and superior after cut appearance, while reducing maintenance with improved reel edge retention.
Watch the Video
Clip Control
Clip Control (Dial-In Clip)
Maintains consistent clip even during clean-up cut when operators slow down.

Specifications

Armrests Optional
Battery 12V
Bedknife Replaceable single edged, EdgeMax™ Microcut Bedknife is standard on all cutting units. Aggressiveness stays constant throughout the life of the reel regardless of reel or bedknife wear. Patented design.
Bedknife Adjustment Dual screw, indexed “click” adjustment to the reel; detents correspond to 0.0007" (0.018 mm) bedknife movement for each position.
Blade Style/Type Reel
Blade Type (Description) Reels are 5" (13 cm) in diameter, 21" (53.3 cm) in length. EdgeSeries™ Reels blades are welded to 5 stamped steel spiders, and heat treated. The reel is ground for diameter and concentricity, and relief ground. The reel weldment shaft is a 1.375" (35 mm) diameter tube with internally splined threaded insert. Two stainless steel ball bearings (30 mm inside diameter) slip fit onto reel shaft retained by internally splined threaded insert. Low drag seals/slingers for added protection with o-ring sealed motor and counterweight. Reel position maintained by a wave washer with no adjusting nut.
Charger

Off-board high efficiency 1200W smart charger.

  • • AC input voltage 100-240VAC
  • • AC input Frequency 50/60 Hz
  • • Max input Current 14 A
  • • Max charge time, empty to full: 9 hrs.
Clip Frequency/Backlapping Standard, on-board and adjustable speed from 200–520 RPM
Controls Traction Pedal: Forward/Neutral/Reverse; Joystick: Raise/Lower; Function control switch: Neutral, Mow, Transport; Key switch; Steering Arm Lock Pedal; Brake pedal; Parking Brake; InfoCenter; Seat Adjusting Lever; Main Power Connectors; Choke; Fuel-Shutoff Valve
Cup Holder Standard
Cutting Unit Accessories 8, 11, 14-Blade Cutting Unit, Roller Options, Roller Scrapers / Brushes / Combs Options, Bedknife and Bedbar Options, Tools and Maintenance Options.
Cutting Unit Lift/Lower 48V electric linear actuators with fully integrated brushless permanent magnet motor and controller. Fully sealed with splash guard. Center lift actuator drop and raise delay is dependent on machine travel velocity.
Cutting Unit Type/Configuration Triplex, balanced cutting units with precision die-cast aluminum cross member with two bolt-on die-cast aluminum side plates. Cutting units feature quick disconnect for removal/installation and are interchangeable to all positions. Double A-Arm Suspension utilizing sealed ball joints allows free cutting unit motion in pitch and yaw. Links system for the roll. The basket is directly mounted to the cutting unit displacing weight evenly over front and rear rollers. (patented)
Drivetrain Hybrid
Electrical System 48V System for traction motor circuit, steering motor circuit, cutting unit motor circuit and lift / lower actuator circuit. 12V system for primary controls and brake actuator.
Engine Cooling Air Cooled
Fuel / Power Source Hybrid
Fuel Capacity 4.9 U.S. gal. (18.5 L)
Gauges/Instrumentation InfoCenter™: Onboard LCD display shows gauges, alerts/faults, service reminders, electrical system diagnostics, low oil pressure, alternator, engine hours, engine rpm, voltage, functional control status, parking brake status, reel speed setting, backlap control, clip control, calibration of 48V components, advanced machine diagnostics.
Grass Distribution Non-adjustable front shield with adjustable cut-off bar to improve grass discharge from reel in wet conditions.
Ground Clearance 3.8" (9.7cm)
Ground Speed - Forward 0 - 10 mph (0 - 16 km/h)
Ground Speed - Reverse 0 - 5 mph (0 - 8 km/h)
Height 80.8" (205 cm)
Height of Cut Range Cutting height is adjusted on front roller by two vertical screws and held by two locking cap screws. Bench HOC range is 0.062" - 0.297" (1.6 - 7.5 mm). With high HOC kit, range is 0.297" - 1.0" (7.5 - 25.4 mm). Effective HOC may vary depending on turf conditions and roller/bedknife installed.
Implement Drive Three, 48V (1.1 KW), air-cooled brushless permanent magnet reel motors with separable controller.
Lighting Optional
Main Frame/Chassis Three tie-down locations (2 side, 1 rear).
Mowing Speed 0 - 5 mph (0 - 8 km/h)
Number of Blades 11, 14, 8

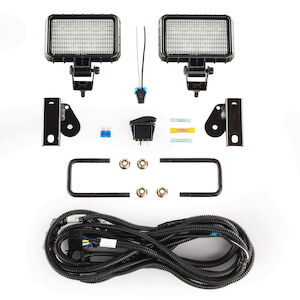

Optional Accessories 3WD Kit, Light Kit, Light Kit - Front Mount Brackets, Rear Light Kit, Seat Kit (Standard or Premium), Left Armrest Kit (Standard), Armrest Kit (Premium), Spark Arrestor Kit (Gas), Canopy, Utility Bag Kit, Wireless Hour Meter, Seat Cover
Overall Width 70.9" (180 cm)
Parking/Service Brakes Traction motor regenerative braking; foot pedal service/parking brake, linear-actuated automatic parking brake.
Power Steering Yes
Power Train (Engine Description) Engine: Kawasaki® 14.5 HP (10.8 kW) @3600 rpm, gasoline, air-cooled, twin-cylinder, governed to 2400 rpm, displacement 36.8 cu-inch (603cc). Choke standard. Generator: 48V 5400W air cooled brushless permanent magnet motor in parallel with four 12V 33AH AGM batteries (connected in series). Generator is used to start engine.
Product Length 98" (249 cm) with baskets
RDS™ System Radius Dependent Speeds – Clip Rate: Maintains consistent cutting unit clip rate in turns on each individual reel (patent-pending). Wheel Speed Control: Individual wheel speed control during turns (patent-pending). Lift-In-Turn: Provides level cut from side to side of cutting units regardless of turning angle (patented).
Reel Diameter 5 in. (12.7cm)
Reel/Cylinder Drive Electric
Rollers Front: Not included with cutting unit, purchased separately. Option between full, narrow-spaced and wide-spaced Wiehle roller. Rear: Steel full, 2" (5.1 cm) diameter with sealed bearings and through-shaft.
Safety/Operator Safety Sound Power: 91 db(A) Sound Power at Operator's Ear: 73 db(A) Sound Power to Bystander: 25 ft – 78 db(A), 50 ft – 73 db(A), 100 ft – 66 db(A)
Steering System Description 48V electric steering motor with torque feedback device. Selective slow down feature for turning in mowing mode. Automatic slow down at high transport speeds when turning.
Tires - Front 19" x 10.5" - 8", 4-ply, Smooth Tread
Tires - Rear 19" x 10.5" - 8", 4-ply, Smooth Tread
Traction Drive 2WD
Traction Drive (System) Positive 2WD traction drive: Two, brushless permanent magnet traction motors coupled to a gearbox. Optional 3WD. (patent-pending).
Turning Circle (Diameter) 69.8" (182 cm) clearance to cutting unit motor
Weight Mow: 1,354 lbs (614 kg) (with 11-blade cutting unit, baskets, standard seat & no fuel) Transport: 1,625 lbs (737 kg) (with 11-blade cutting unit, baskets, standard seat & no fuel)
Wheelbase 49.8" (126.5 cm)
Width of Cut 59" (150 cm)
