Reelmaster® 5010-H

  • Model: 03950
See All Items in Reelmaster® 5010 Series
Request a Demo
  • The onboard LCD display provides system information, alerts, service reminders, diagnostics, and more.
  • Plug and Play feature allows it to accept 5-inch or 7-inch diameter DPA cutting units.
  • After desired clip rate is set, reel speed automatically and continuously adjusts to ground speed, ensuring consistent cutting performance across all 5 cutting units.
  • Includes four, 12-volt, Absorbed Glass Mat (AGM) sealed, maintenance-free batteries.
  • With over 40 hp available, the machine power output is matched to what the condidtions require including verticutting, scalping and steep hills.
  • Switching to electric motors resulted in over 100 fewer leak points than a conventional 100" fairway mower.
  • Dual Precision Adjustment (DPA) cutting units combine to deliver a consistent, high quality cut and superior after cut appearance, while reducing maintenance with improved reel edge retention.
  • Save an average of 20% in fuel consumption over comparably equipped mowers.
  • Easily keep a consistent speed and reduce fatigue while mowing large areas.
  • Durability, performance, comfort, and serviceability come standard.

Overview

The Reelmaster® 5010-H is the industry’s first and only reel mower with a true hybrid drive system. The Reelmaster 5010-H utilizes a Kubota 24.8 hp diesel engine in concert with an in-line motor generator and a self-recharging 48-volt battery pack to provide seamless power to the vehicle and cutting units. The combination of these two power sources comprises Toro’s patented hybrid power delivery system called PowerMatch™. PowerMatch enables the Reelmaster 5010-H to match the power generated to the power required for all cutting conditions. The result is the availability of over 40 horsepower, but only when cutting conditions require it, which saves on average 20% fuel usage, improving operating costs, and the vehicle’s carbon footprint.

Electric = Hybrid Model

Features

Precision Control
InfoCenter™
Easily set and save maximum mow and transport speeds, view cruise control speed setting and monitor system information and service reminders and more with ease on the new console mounted InfoCenter™.
Versatility
Versatility
The Reelmaster 5010-H has a Plug and Play feature that allows it to accept 5-inch or 7-inch diameter DPA cutting units. Simply plug in the cutting unit and motors of your choice and the machine automatically makes all the necessary adjustments. The 5010-H can be equipped with 5" or 7" reels, in either 8 or 11 blade configurations.
Efficient Reel Control & Performance
Efficient Reel Control & Performance
Through the InfoCenter™, electric reel motors allow for precise setting of the reel speed and clip rate providing consistent power across all five cutting units for a superior cut. The cutting units also feature low-drag seals and low-friction bearing which improve wear and reduce the required horsepower to run the decks.
48 Volt Battery Pack
48 Volt Battery Pack
The battery pack is made up of four, 12-volt, Absorbed Glass Mat (AGM) batteries that are maintenance-free and sealed. The batteries are very similar to the ones used in the automobile industry for start-stop hybrids. These batteries are designed for a very long life when they are shallowly discharged and repeatedly recharged with a system like our PowerMatch™.
PowerMatch™
PowerMatch™
With over 40 hp (29.8 kW) available , the PowerMatch system can handle verticutting, scalping, and steep hills. Power is used so efficiently that the Reelmaster 5010-H can perform at least on-par, and in many cases better than much higher horsepower machines. Nearly 10 years of vigorous real-world testing have proven the Reelmaster 5010-H has the power to perform in the most rigorous conditions, and the efficiency to keep it up year after year.
Worry Free
Worry Free
Removing the hydraulic cutting mowers and replacing them with electric motors on the Reelmaster 5010-H resulted in over 100 fewer leak points than a conventional 100" fairway mower. The remaining vehicle and cutting unit lift system hydraulic lines are predominately hard lines or hoses with limited movement, and are not subject to the same fatigue or service intervals as the cutting unit hoses and motors.
EdgeSeries™ Reels
EdgeSeries™ Reels
Dual Precision Adjustment (DPA) cutting units – featuring Toro’s EdgeSeries™ reels combine to deliver a consistent, high quality cut and superior after cut appearance, while reducing maintenance with improved reel edge retention.
Watch the Video
Fuel Savings
Fuel Savings
Reelmaster 5010-H is the only fairway mower with a true hybrid powerplant. Like a hybrid vehicle, PowerMatch™ technology provides additional horsepower from the onboard battery pack only when it is needed, allowing the mower to perform on par with other similar mowers, while the smaller displacement engine provides unmatched fuel economy in this mower segment.
Cruise Control
Electronic Cruise Control

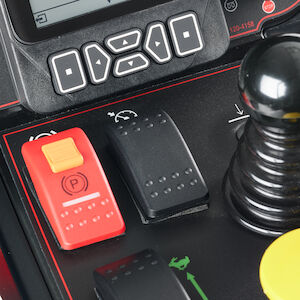

Switch activated and push button adjustable electronic cruise control allows operators to easily maintain a constant mowing speed for consistent results. It can also be used to set up a "slow in turn" to minimize the risk of turf damage.
Proven Platform
Proven Platform

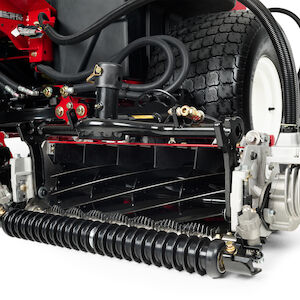

Built on the same proven platform that has become the industry standard, the Reelmaster 5010-H provides the same durability, mowing performance, operator comfort and serviceability ease of the legendary 5010 series of mowers while eliminating the potential for oil leaks from a traditional hydraulic mow circuit.

Specifications

Armrests Standard
Battery 12V AGM
Bedknife Adjustment Precision machined cutting units maintain levelness and hold adjustments. Dual Precision Adjustment (DPA) allows quick bedknife to reel adjustment.
Blade Style/Type Reel
Blade Type (Description) EdgeSeries™ DPA radial or forward swept reels
Clip Frequency/Backlapping Electronically controlled, variable reel speed for optimal clip frequency and independently controlled backlap speed. Standard on-board backlapping.
Controls Single foot-operated traction pedal, foot actuated mow speed limiter, foot actuated service and parking brake. Hand-operated key ignition switch, switch-operated throttle, isochronous engine speed control, cutting unit raise/lower joystick, cutting unit engage switch, and LED headlight switch, all positioned on right hand pivoting control console.
Cooling System Description Rear mounted radiator with industrial tube and fin construction, 6 fins per inch, 5.5 quart (5.2 liter) system capacity.
Cup Holder Standard
Cutting Unit Accessories Rear Roller Brush Kit, Universal Groomer, Broomer, Grass Baskets
Cutting Unit Lift/Lower Hydraulic - front and rear cutting unit lift/lower are sequenced for uniform starting and ending points.
Cutting Unit Type/Configuration Five electrically driven, DPA cutting units with low-drag seal and bearing package. Frame precision manufactured, die-cast aluminum for increased strength, simple click adjustment maintenance.
Drivetrain Hybrid
Electrical System Heavy duty 12-volt battery, 570 CCA, 40 amp alternator. Electronic control unit is a microprocessor based, solid state control unit with diagnostic capabilities.
Engine Cooling Liquid Cooled
Fuel / Power Source Hybrid
Fuel Capacity 14 U.S. gal. (53 L)
Fuel Filter Replaceable spin-on fuel filter/water separator.
Gauges/Instrumentation InfoCenter™: Onboard LCD display shows gauges, alerts/faults, service reminders, electrical system diagnostics, indicates fuel level, coolant temp., low oil pressure, alternator, engine hours, engine rpm, voltage, reel speed, backlap speed, glow indicator, lift/lower indicator.
Ground Speed - Forward 0 - 10 mph (0 - 16.1 km/h)
Ground Speed - Reverse 0 - 4 mph (0 - 6.4 km/h)
Height 63" (160 cm) to seat, 85.5" (217.2 cm) to ROPS
Height of Cut Range 8-Blade:
5": 0.5" - 1.5" (13 mm -38 mm)
7": 0.5" - 2.0" (13 mm - 51 mm)
11-Blade: 0.25" - 0.75" (6 mm -19 mm)
Hydraulic Fluid Type Toro PX™ Extended Life Hydraulic Fluid
IntelliDash™ Capable Yes
Interlocks Traction pedal, parking brake, operator presence in seat, and cutting unit engage/disengage safety interlock switches.
Lighting Standard
Main Frame/Chassis High strength steel frame with welded construction.
Max Slope Angle Refer to operator's manual.
Mowing Speed 0 - 8 mph (0 - 12.8 km/h)
Number of Blades 11, 8
Oil Capacity 3.5 U.S. qt. (3.3 L)
Oil Cooler Description Pressurized lubrication system.
Optional Accessories Sunshade (with optional operator cooling fan, LED work lights, rotating amber beacon), 2-post ROPS Extension Kit (with optional windshield, operator cooling fan, LED work lights, rotating amber beacon and safety and security cage)
Overall Width 116" (288.3 cm)
Parking/Service Brakes Individual left and right drum-type front wheel brakes. Brakes may be actuated for service braking via left foot pedal. Integrated foot pedal lock provides parking brake. Dynamic braking through hydrostatic traction drive system.
Power Steering Yes
Power Train (Engine Description) Kubota® liquid-cooled diesel, 3-cylinder, 24.8 hp (18.5 kW). Four 12V Absorbed Glass Mat (AGM), sealed, maintenance-free lead carbon batteries. Tier IV compliant.
Product Length 111" (281.9 cm)
Reel Diameter 5 in. or 7 in. (12.7cm or 17.8cm)
Reel/Cylinder Drive Electric
Rollers Wiehle front roller and standard rear roller included. Optional front full and shoulder rollers, and longer rear rollers available.
Safety/Operator Safety 2-post ROPS and retractable seat belts standard
Seat Deluxe high back suspension seat with fore, aft, height and weight adjustment.
Starting Switch
Steering System Description Rear wheel, power steering with an independent hydraulic pump and circuit.
Tires - Front 26.5" x 14" - 12", 4-ply, Turf Tire
Tires - Rear 20" x 12" - 10", 4-ply, Turf Tread
Tool Box Standard
Traction Drive Front-Wheel Drive
Traction Drive (System) Front drive wheels powered by a hydrostatic pump with individual wheel motors. All-wheel drive optional with CrossTrax® All-Wheel Drive system, which transfers power from the front wheels to the opposite rear wheels via independent rear wheel motors.
Transport Width 92" (233.7 cm)
Weight With 5" cutting units: 2WD – 2,776 lbs. (1,259 kg), 4WD – 2,827 lbs. (1,282 kg) With 7" cutting units: 2WD – 2,907 lbs. (1,319 kg), 4WD – 2,965 lbs. (1,345 kg)
Wheelbase 60" (152.4 cm)
Width of Cut 100" (254 cm)
