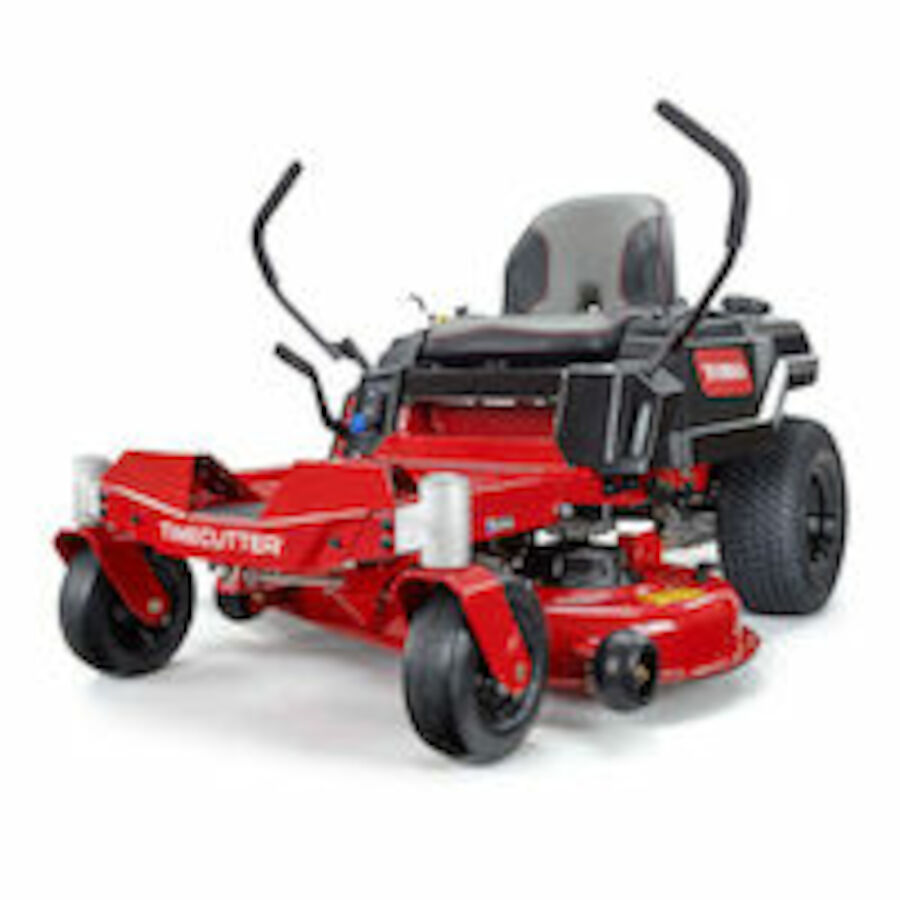

Timecutter® ZS4200T 107 cm Zero Turn Riding Mower 74677

More Power for Large Lawns with Zero Turning Radius Technology
  • Model: 74677
  • UPC/EAN: 9310317746777
Find a Dealer

Overview

Lawns up to 7,000 square meters can be a challenge for many mowers, but not this petrol-powered zero-turn TimeCutter® ZS4200T. The Briggs & Stratton 724cc engine gives you plenty of power, the 107 cm cutting width covers a lot of ground, and the dual hydrostatic drive systems deliver responsive maneuverability and time-saving zero-turn capabilities. Equipped with Toro’s Recycler® cutting system, clippings are finely processed to save you time and maintain a healthy lawn. Toro’s Smart Speed® control system lets you choose from three ground speed ranges — Trim, Tow and Mow — for optimal performance and control. With a high-back seat for comfort, onboard storage cubby, and a washout port for fast deck cleanup, convenience is built in. A hitch kit also comes standard, making it easy to attach a dump cart, fertilizer spreader and more (attachments sold separately).

Specifications

Anti Scalp Wheels Standard
Armrests Optional
Blade Tip Speed 5,638 m/min
Caster Tyres 28cm x 10cm Smooth
Comfort Platform Foldable Operator Platform with Suspension
Controls Dual Wrap Around Levers
Cooling System Air Cooled
Cup Holder Standard
Cutting Width 107 cm
Deck Design Stamped
Deck Material 10 Gauge Steel
Discharge Chute Side
Drive System Hydraulic Unitised Pumps and Wheel Motors
Drive Tyres 46cm x 19cm-20cm
Engine Briggs & Stratton 724cc VTwin
Engine Brand Briggs & Stratton
Engine Displacement (cc) 724 cc
Foot Operated Height of Cut Optional
Forward Ground/Transport Speed Up to 11.27 kph
Forward Mowing Speed Up to 11.27 kph
Fuel Capacity 11.4 litres
Fuel Type Petrol
Height of Cut 3.8 - 11.4 cm
Hitch Bracket Standard
Hour Meter Optional
Ignition Electric
Lighting Optional
Number of Blades 2
Product Features Cup Holder, Electric Start, Hitch Bracket, Low Back Seat, Smart Speed
Product Use Residential
Recycler Kit Standard
Roll-Over Protection (ROPS) Optional
Seat 40,6 cm (16") Handcrafted
Spindle Bearings Maintenance-free
Start Type Electric
Steering Controls Dual Wrap Around Levers
Steering Dampeners Standard Dampers
Terrain Type Bumpy Lawn
Transmission Dual Hydrostatic HG-ZT2100
Tyres 27.9 cm x 10.2 cm Front, 45.7 cm x 19 cm Rear
Washout Port Standard
Wheels Black Steel
Yard Size Up to 7,000 m2

Parts & Manuals

Select your model year from the options below to view parts & manuals.

74677 Serial number
417000000-999999999
414700000-416999999
400000000-414699999



Warranty

For complete product warranty information, contact Toro Customer Service

**See dealer for Warranty details.
