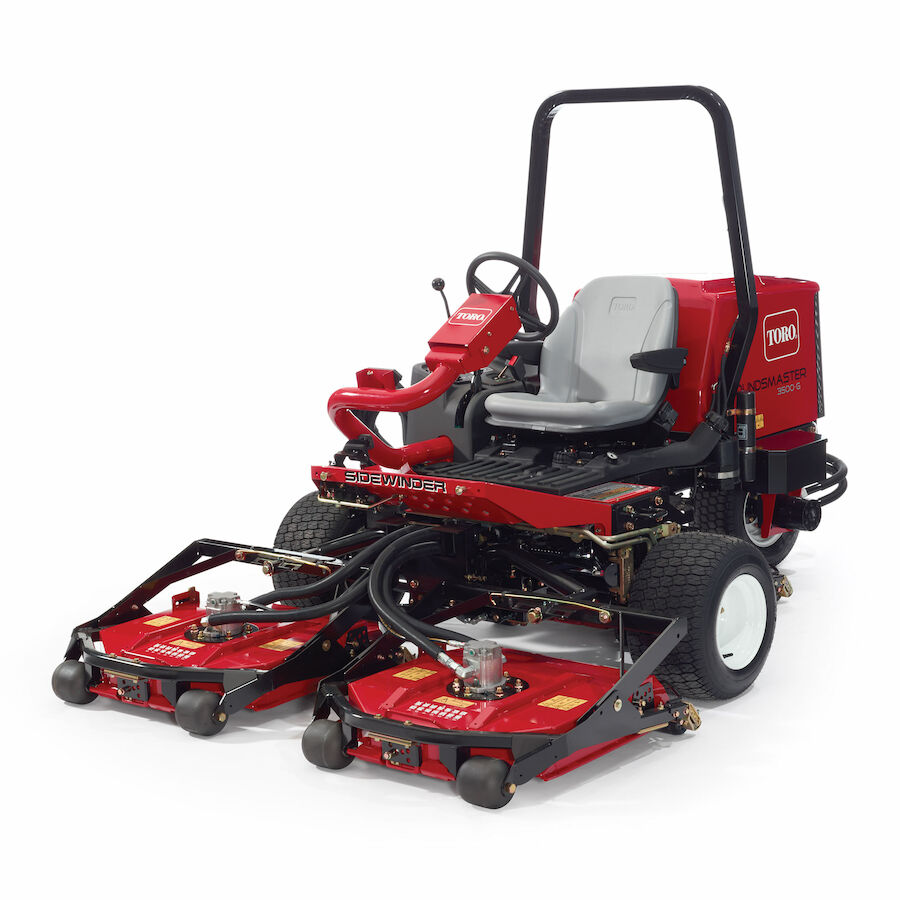

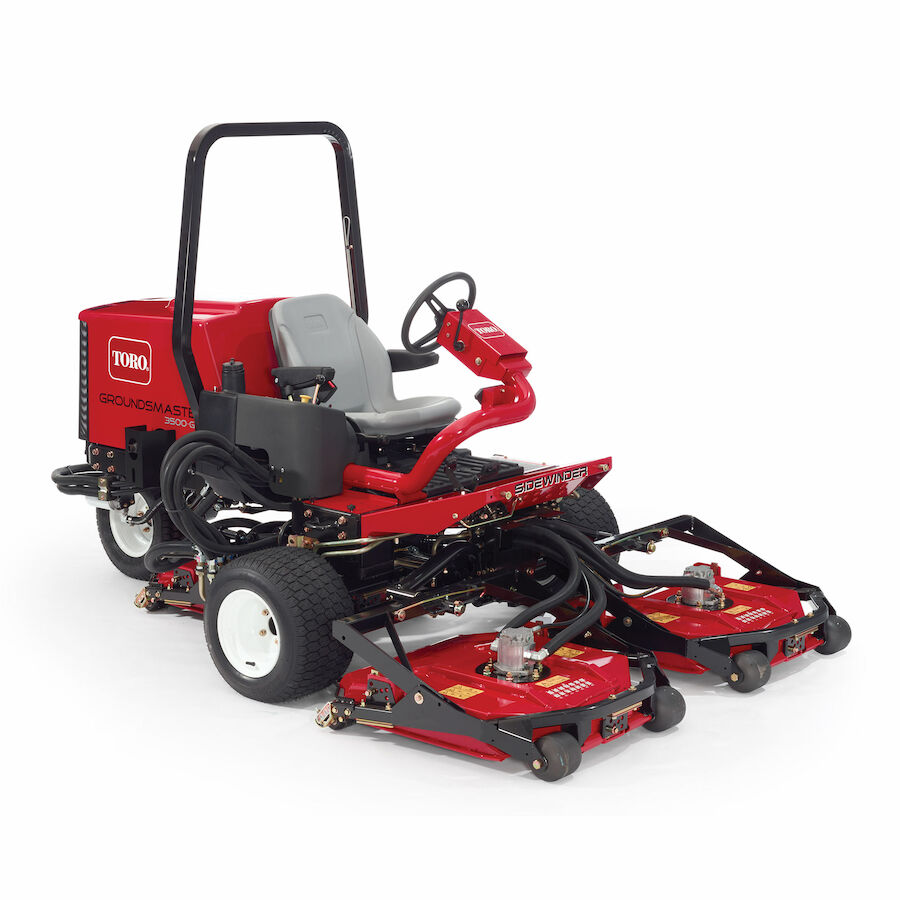

Groundsmaster® 3500-D Diesel Powered with Sidewinder

  • Model: 30807
See All Items in Groundsmaster® 3500 Series
  • The unique Toro Series/Parallel™ traction drive system provides steady traction in all conditions, even in wet grass and over undulating terrain. Its full-time, 3-wheel drive system maintains power to two of the three wheels at all times, minimising tyre spinouts and scuffing.
  • Sidewinder cutting units shift left and right a total of 61 cm. This allows the tyre tracks to be shifted within the mowing path to reduce wear on the turf.
  • The Contour™ Plus cutting technology takes quality of cut to a whole new level. Air inlet pockets keep the grass standing tall for the cleanest possible cut, while an acceleration baffle speeds clipping circulation and assures maximum power.
  • The ground-following design of each Contour™ Plus free-floating deck permits mowing the most challenging berms without scalping. Two front rollers and a rear roller allow the deck to smoothly pass over turf.

Overview

The Groundsmaster® 3500 Series is a revolutionary triplex rotary mower designed for superior performance trimming. The free-floating Contour™ Plus cutting decks allow mowing of undulating terrain without scalping. The powerful engine and exclusive traction drive system, gets the mowing job done quickly.

Features

Time Saving
Time Saving
Unlike any other mower on the market, the Groundsmaster® 3500-D allows you to be more productive. The 173 cm width-of-cut allows you to mow generous swaths, yet its compact size and the Sidewinder® system also allow you to make tight manoeuvres in trim areas. Locations normally requiring two different machines can be handled by one.

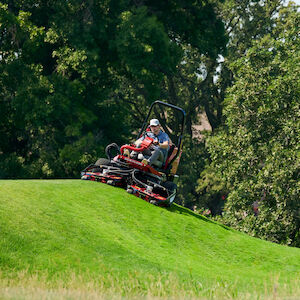

Superior Traction
Superior Traction
The unique Toro Series/Parallel™ traction drive system provides steady traction in all conditions, even in wet grass and over undulating terrain. Its full-time, 3-wheel drive system maintains power to two of the three wheels at all times, minimising tyre spinouts and scuffing.
Sidewinder® Cutting Unit System
Sidewinder® Cutting Unit System
Sidewinder cutting units shift left and right a total of 61 cm. This allows the tyre tracks to be shifted within the mowing path to reduce wear on the turf.

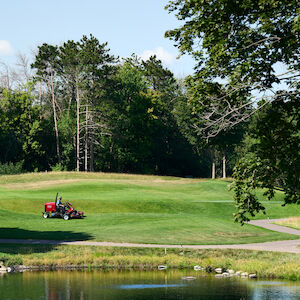

Quality of Cut
Quality of Cut
The Contour™ Plus cutting technology takes quality of cut to a whole new level. Air inlet pockets keep the grass standing tall for the cleanest possible cut, while an acceleration baffle speeds clipping circulation and assures maximum power. A unique directional vane and modified discharge opening deliver even clipping dispersion. Optional mulching kit is available.
Scalp-Free Mowing
Scalp-Free Mowing
The ground-following design of each Contour™ Plus free-floating deck permits mowing the most challenging berms without scalping. Two front rollers and a rear roller allow the deck to smoothly pass over turf.

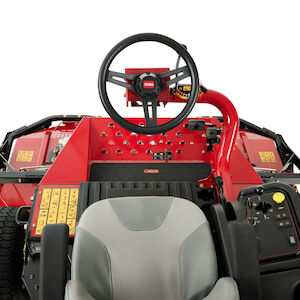

Operator Comfort
Operator Comfort
Deluxe seat adjusts to let you customise your work environment and reduce fatigue. Plenty of space at the operators station paired with easy-to-read controls increases comfort. Plus the steering wheel tilts for steering preference.

Specifications

Air Filter Remote-mounted 5" Donaldson® air cleaner.
Armrests Standard
Battery 12V
Blade Style/Type Rotary
Blade Type (Description) Combination Blades: 68.6 cm long, 6.4 cm wide, 6.4 mm thick.
Cab Unit N/A
Controls Forward and reverse traction control pedals; mow/transport foot lever; hand activated parking brake; hand operated ignition key switch; tilt steering wheel lock; PTO switch; throttle; joystick control for deck raise and lower; cutting deck transport lock.
Cooling System Description Rear-mounted, cross flow 4-row radiator.
Cup Holder Standard
Cutting Unit Accessories Mulching Kit, Sectional Roller, Roller Scraper Kit
Cutting Unit Lift/Lower Joystick control for deck raise and lower.
Cutting Unit Type/Configuration Three Contour™ Plus 69 cm, rear-discharge rotary with standard full-length striping rear rollers on each deck. Sidewinder® system allows all three decks to slide right and left 30 cm of centre, 61 cm total travel. 173 cm standard and 183 cm optional. Deck overhang for trimming is 30.5 cm @ 173 cm width of cut and 35.5 cm @ 183 cm. Overlap: 16.5 cm at standard width of cut.
Deck Construction 10-gauge steel constructed chambers with 12-gauge welded reinforcements. 3.8 cm square x 6.35 mm wall tube with 7-gauge side supports. Spindle support 0.48 cm high-strength steel and 10-gauge exterior channels.
Drivetrain Diesel
Electrical System 12 Volt, 585 CCA battery and 40 amp alternator.
Engine Cooling Liquid Cooled
Fuel Capacity 41.6 litres
Fuel Filter Fuel filter/water separator.
Fuel Type Diesel / Biodiesel
Gauges/Instrumentation Fuel gauge and hour meter. Light cluster with check engine and charge indicator lights. Low engine oil pressure and high coolant temperature warning lights (high temperature safety shut off).
Ground Clearance 15.3 cm
Ground Following 15.3 cm anti-scalp cups on each blade.
Ground Speed - Forward 0 to 9 mph
Ground Speed - Reverse 0 - 4 mph
Height 193 cm with ROPS
Height of Cut Range 1.9 cm - 10.2 cm in 6.4 mm increments. 3-position 0.762 mm incremental calibration
Hydraulic Cylinders Open centre, manual valves, gear pump hydraulic system.
Hydraulic Fluid Capacity 13.2 litres
Hydraulic Fluid Type Toro PX™ Extended Life Hydraulic Fluid
Interlocks Traction pedal, operator presence in seat, PTO engage or disengage, and cutting deck mow or transport safety interlock switches. Parking break set prohibits movement through traction pedal.
Length 295 cm
Lighting Optional
Main Frame/Chassis Formed steel, welded steel and steel tubing.
Max Slope Angle Refer to operator’s manual.
Mowing Rate (Productivity) Up to 4.1 acres/hr
Mowing Speed 0 to 6 mph
Number of Blades 3
Oil Capacity 6.2 litres
Oil Cooler Description Single pass, aluminium side-by-side oil cooler/radiator, 6.3 fins per inch, serpentine fin profile, 6.1 litre capacity.
Optional Accessories Bimini Canvas Sunshade, LED Work Lights, Universal Sunshade (White or Red)
Overall Width 182 cm with standard 173 cm width of cut 193 cm with optional 183 cm width of cut
Parking/Service Brakes Dynamic through hydrostatic transmission service brake. Hand actuated over centre, drum type parking brake.
Power Steering Yes
Power Train (Engine Description) Kubota® 3-cylinder, liquid-cooled, diesel. Power: 24.8 hp (18.5 kW) gross, at rated speed of 3000 rpm. Torque peak: 71.5 N·m @ 2,200 rpm. Displacement: 1,123 cc. EPA Tier IV Final and Stage V Compliant.
Rollers Standard full-length striping rear rollers on each deck.
Safety/Operator Safety Two post ROPS, seat belt and slope indicator standard.
Seat Two-piece premium commercial two-tone grey vinyl with two armrests, fore/aft adjustment.
Sidewinder Yes
Spindle Assembly Ductile cast iron spindle housing. Dual greaseable tapered roller bearings. 3.2 cm diameter solid cold finished steel spindle shaft. Splined connection between spindle shaft and deck motor. Welded blade retainer plus anti-scalp cups.
Starting Key Start
Steering System Description Hydraulic power steering, tilt wheel.
Tires - Rear 20 x 10.00-10, 4-ply, Turf Tread
Tool Box Standard
Traction Drive 3WD
Traction Drive 3-wheel drive in mow and transport. Series/Parallel hydrostatic, closed-loop transmission provides infinitely variable ground speed in forward and reverse. Variable displacement piston type pump.
Transport Width 184 cm
Tyres - Front 20 x 12.00-10, 4-ply, Turf Tread
Weight 957 kg with cutting units.
Wheelbase 151 cm
Width of Cut 173 cm
