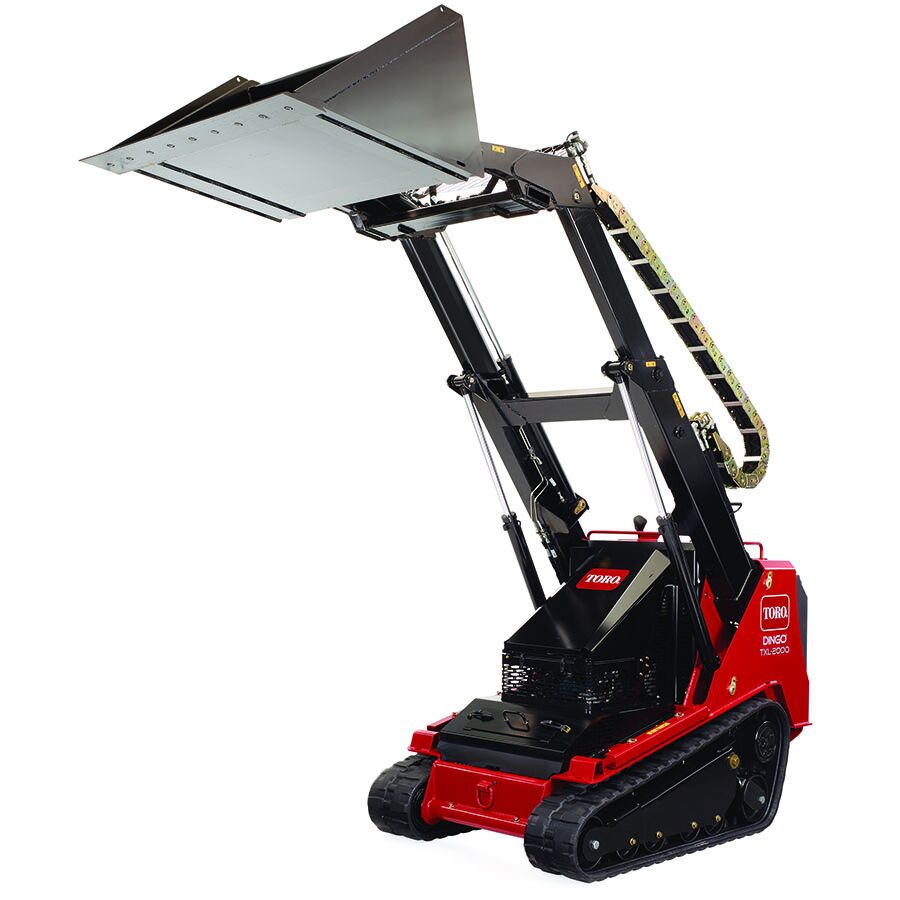

Dingo® TXL 2000 Telescoping Track Loader

  • Model: 22530
See All Items in Dingo® TXL 2000 Track Loader
  • Outstanding 360-degree visibility
  • Outstanding reach and lift height

Overview

The Dingo TXL 2000 has you covered. No need for separate machines to unload, haul, dig and place material; the Dingo TXL 2000 can do it all. With the benefits of a compact utility loader, mini excavator and compact track loader rolled into one piece of equipment, it’s a smart solution that’s in a category of its own.

Features

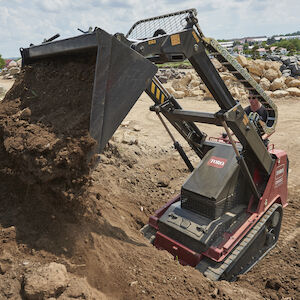

TXL2000 dumbing soil in pile with the bucket attachment
Telescoping Arms
A Toro-exclusive telescoping arm design allows the operator to lift loads up to 123” high (hinge pin height) and reach out 44” for placement and removal of jobsite materials.

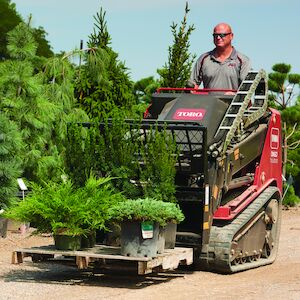

TXL2000 using the fork attachment carrying bushes on a pallet
Superior Visibility
A dedicated stand-on machine offers superior 360° visibility for optimized jobsite performance and awareness.

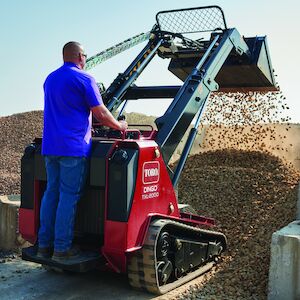

TXL2000 dumping rock in a rock pile
Compact Footprint
A 54” wide frame allows the machine to access smaller spaces that larger machines are not able to.

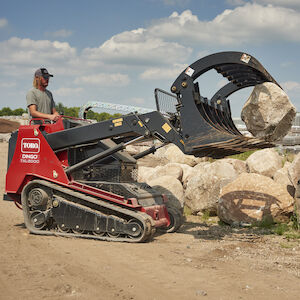

TXL 2000 carrying a big rock using the grapple attachment
2,000 lbs. ROC
An industry leading 2,000 lbs. rated operating capacity allows the operator to handle many jobsite materials suited for larger machines.

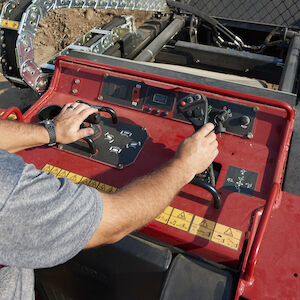

TXL2000 control system
Controls
Toro’s exclusive traction control design allows operator’s of all skill levels to operate the machine with ease and precision. The loader arm control is designed to allow not only loader arm function control, but has the telescoping function, proportional auxiliary control, and directional left/right control for applicable Toro TXL 2000 attachments.

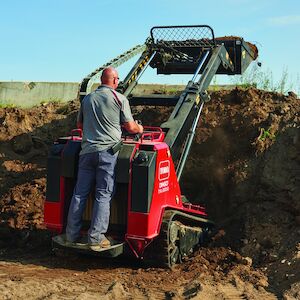

TXL2000 dumping dirt using the bucket attachment
Ease of Access
The dedicated stand-on platform allows the operator to step-on and step-off the machine with ease and comfort to allow for enhanced jobsite efficiencies – not having to enter/exit a cab.

Specifications

Air Filter Two-stage, Heavy-duty, Remote
Cooling System Liquid Cooled
Dump Angle 46.3 deg
Dump Height 88.9 in. / 225.8 cm
Engine Horsepower 49.6 hp (37 kW)
Engine Make Kubota
Engine Model D1803
Fuel Tank 18.3 gal. / 69.3 L
Fuel Type Diesel
Ground Clearance 6.3 in. / 16.0 cm
Ground Pressure 5.3 PSI
Ground Speed - Forward Up to 5.4 mph / 8.6 km/h
Ground Speed - Reverse Up to 5.4 mph / 8.6 km/h
Height 67.8 in. / 172.2 cm
Height - With Bucket 67.8 in. / 172.2 cm
Hinge Pin Height 123.4 in. / 313.4 cm
Hinge Pin Height - Extended 123.4 in. / 313.4 cm
Hinge Pin Height - Retracted 98.6 in. / 250.4 cm
Hydraulic Flow - Auxiliary 21.4 GPM
Hydraulic Flow - Traction 21.5 GPM (81.4 LPM)
Hydraulic Pressure Auxiliary 3,000 PSI
Hydraulic Pressure Traction 4,350 PSI
Length 98.8 in. / 250.9 cm
Length - With Bucket 136.9 in. / 347.7 cm
Max Operating Height 67.8 in. / 172.2 cm
Oil Capacity 7.4 qt / 7 L
Rated Operating Capacity - Extended* 920 lbs / 417 kg
Rated Operating Capacity - Retracted* 2,000 lbs / 907 kg
Reach - Fully Raised 45.2 in. / 114.8 cm
Reservoir Capacity 15.25 gal. / 57.7 L
Tip Capacity 5,715 lbs / 2,592 kg
Track Length 162.2 in. / 411.9 cm
Track Width 11.8 in. / 29.9 cm
Tracks Sprocket-drive, 6 Road Wheels Per Side
Traction Dual Hydrostatic Pump
Weight 6,690 lbs / 3,034.5 kg
Wheelbase 53.7 in. / 136.4 cm
Width 55 in. / 139.7 cm
Width - With Bucket 55 in. / 139.7 cm

Disclaimer

*Per ISO 14397-1
