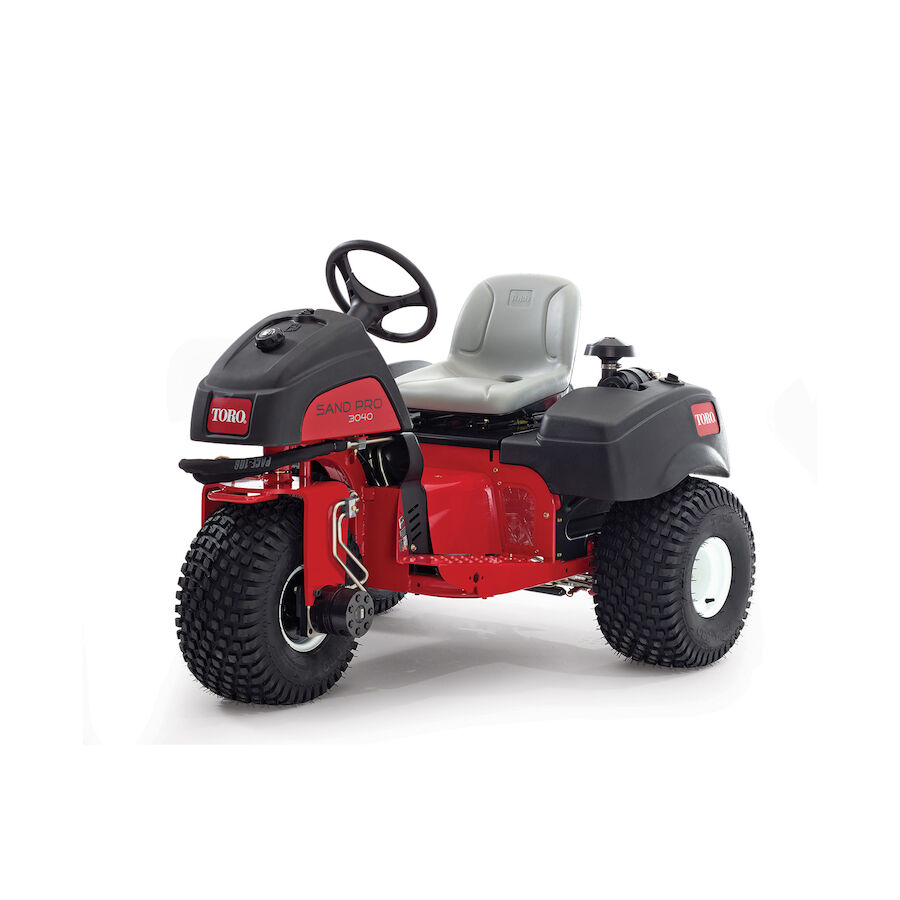

Sand Pro® 3040

  • Model: 08743
See All Items in Sand Pro® Series
Request a Demo
  • This unit was designed with the mechanic in mind, to simplify and increase access to all scheduled maintenance. The majority of scheduled maintenance projects can be accessed by lifting the operator seat. For increased access, the side and center quarter panels can be taken off by removing just a few bolts.
  • The 3WD Series/Parallel™ traction drive improves traction in wet or heavy working conditions to get the job completed quickly. In traditional 3WD units all traction effort is lost as soon as one wheel slips. Series/Parallel™ ensures that you always have tractive effort with at least one wheel to keep your unit from getting stuck and losing precious time.
  • Quick connect hydraulics make it simple to connect or disconnect any of the powered attachments in under a minute. This eliminates the need for dedicated equipment.
  • For operator ease of use, and to improve the effectiveness of the steerable front attachments, hydraulic power steering is now available on the 5040 and a rugged gear drive system on the 3040. Both designs are now environmentally sealed to ensure long life and reduced maintenance.
  • The trusted Vanguard® engine is fuel efficient, runs cooler and features a fully pressurized oil lubrication system for longer life.
  • Easy to use and adapt to the next task. Having the right tool for the job increases the effectiveness of your crew and the efficiency of your operation. Attachments are designed to minimize operator influence to achieve the same result, regardless of whether a new or veteran employee performed the task.
  • Fingertip operation (no overhead bar), paired handle/foot pedal and torsion bar to improve down pressure provide level/consistent contouring in difficult areas. Quick-up latch locks blade in transport position between uses to improve operator ease of use.

Overview

It’s time to demand more from your bunker rake. With the exclusive Quick Attach System (QAS) offering tool-free, quick attachment change outs and over 25 valuable attachments, the Sand Pro 3040 and 5040 are versatile utility vehicles with as many uses outside the bunker as in it. The Sand Pro 5040’s optional front QAS provides added flexibility and exclusive steerable front attachments for surgical precision. The Toro Sand Pro keeps bunkers in tournament condition every day.

Features

Maintenance Friendly Layout
Maintenance Friendly Layout
The new unit was designed with the mechanic in mind, to reduce, simplify, and increase access to all scheduled maintenance. The majority of scheduled maintenance projects can be accessed by lifting the operator seat. For increased access, the side and center quarter panels can be taken off by removing just a few bolts.
3WD Series/Parallel™ Traction Drive
3WD Series/Parallel™ Traction Drive
The 3WD Series/Parallel™ traction drive improves traction in wet or heavy working conditions to get the job completed quickly. In traditional 3WD units all traction effort is lost as soon as one wheel slips. Series/Parallel™ ensures that you always have tractive effort with at least one wheel to keep your unit from getting stuck and losing precious time.
Quick Connect Hydraulics
Quick Connect Hydraulics
Quick connect hydraulics make it simple to connect or disconnect any of the powered attachments in under a minute. This eliminates the need for dedicated equipment.
Maneuverable Steering
Maneuverable Steering
For operator ease of use, and to improve the effectiveness of the steerable front attachments, hydraulic power steering is now available on the 5040 and a rugged gear drive system on the 3040. Both designs are now environmentally sealed to ensure long life and reduced maintenance.
Mid-Mount System
Mid-Mount System
With the mid-mount system, a flex mounted toolbar can be adjusted to flex backwards when it comes in contact with anything from rocks or other rigid objects to prevent gouging or wash boarding. Multiple locking depth settings to ensure consistent depth of scarification from day to day or between operators. A mid-mount leveling system is also available to make quick work of the difficult projects like around dugouts or player positions.
Power Packed Engines
Power Packed Engines
The trusted Vanguard® engine is fuel efficient, runs cooler and features a fully pressurized oil lubrication system for longer life.
Quick Attach System™ (QAS)
Quick Attach System™ (QAS)
With the Quick Attach System™ (QAS), anyone can switch from one attachment to another in less than a minute, with no tools required! Match the machine to the environment to get your fields back into playing condition The QAS allows you to do more with less, and get the job done faster. Rear QAS is standard on the Sand Pro® 3040 and 5040, front QAS™ is optional on the Sand Pro® 5040.
Ease of Use
Ease of Use
Easy to use and adapt to the next task. Having the right tool for the job increases the effectiveness of your crew and the efficiency of your operation. Attachments are designed to minimize operator influence to achieve the same result, regardless of whether a new or veteran employee performed the task.
Front Manual Blade
Front Manual Blade
Fingertip operation (no overhead bar), paired handle/foot pedal and torsion bar to improve down pressure provide level/consistent contouring in difficult areas. Quick-up latch locks blade in transport position between uses to improve operator ease of use.

Specifications

Air Filter Remote mounted 3-phase Donaldson® air cleaner
Battery 12V
Controls Hand operated choke, throttle, and hydraulic control for raising/lowering with float. Foot pedal controls traction forward/reverse speed. Rear hydraulic lift and lower controls.
Cooling System Air Cooled
Displacement 480cc (29.3 cu. in.)
Drivetrain Gas
Frame Tricycle vehicle with welded rectangular tubular steel frame construction. Rear engine placement.
Fuel / Power Source Gasoline
Fuel Capacity 5.0 gallon (18.9 liter)
Gauges/Instrumentation Hour meter
Ground Clearance 6.0" (15.2 cm)
Ground Speed - Forward 0 - 10 mph (0 - 16 km/h)
Ground Speed - Reverse 0 - 4.3 mph (0 - 6.9 km/h)
Height 45.25" (114.9 cm)
Hydraulic Oil Toro PX Hydraulic Oil; 7.0 gallon (26.4 liter) system capacity. Polyethylene reservoir to reduce corrosion. 10 (nominal) micron replaceable cartridge.
Interlock Neutral interlock switch, seat switch
Length 67.5" (171.5 cm)
Oil Capacity with Filter 1.75 quart (1.8 liter)
Optional Accessories QAS A-Frame Assembly, 400-Hour Filter Maintenance Kit, Rear Remote Hydraulics, Variable Orifice Kit, Light Kit, Speed Control Kit, Hitch/Tow Bar, Front Weight Kit, Smooth Tire, Turf Tire
Overall Width 58" (147 cm)
Parking/Service Brakes Hand actuated brake lever
Power Steering No
Power Train (Engine Description) Vanguard®, V-twin cylinder, 4-cycle, OHV, air-cooled, gas engine with cast iron sleeves. 16 hp (11.9 kW) at 3600 rpm. Displacement: 29.3 cu. in. (480 cc). Electronic ignition. Full pressure lubrication, oil filter. Base mounted engine and pump with 4 isolation mounts.
Rear Attachment Hydraulic Lift Standard
Sound Level 83 dB(A) at operator ear, under normal operating conditions
Starting Key Start
Steering System Description Manual front wheel steering. 15" (38 cm) diameter steering wheel.
Tires - Front 22" x 11" - 8", 2-ply, Knobby Tread
Tires - Rear 22" x 11" - 8", 2-ply, Knobby Tread
Traction Drive 3WD
Traction Drive Direct driven hydrostatic variable displacement piston pump to 3 hydraulic motors for 3WD. Large, front mounted hydraulic cooler and fan. Foot pedal control, forward/reverse. Patented Series/Parallel hydraulic traction system keeps three wheels working together, virtually eliminates spin-outs.
Vehicle Configuration Standard
Weight 930 lbs. (421.8 kg), net weight less fluids
Wheelbase 42.75" (108 cm)
